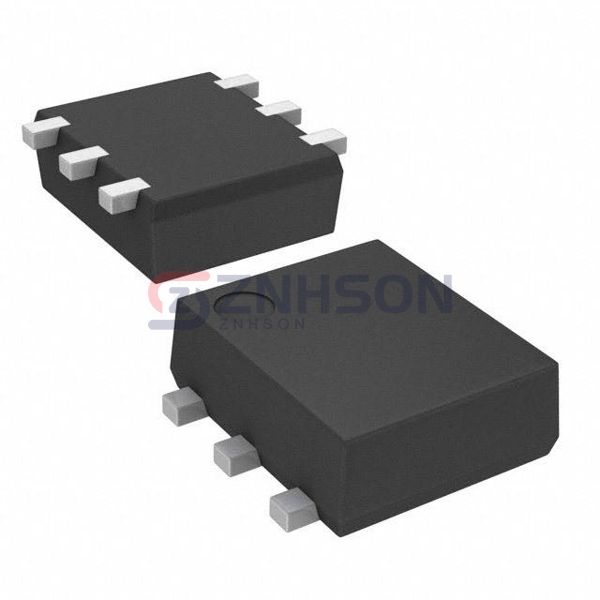

MTM761230LBF
Panasonic Electronic Components
Panasonic Electronic Components
MOSFET P-CH 20V 3A WSMINI6
$0.49
Available to order
Reference Price (USD)
3,000+
$0.17824
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the MTM761230LBF by Panasonic Electronic Components, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The MTM761230LBF stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Panasonic Electronic Components.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 3A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4V
- Rds On (Max) @ Id, Vgs: 55mOhm @ 1A, 4V
- Vgs(th) (Max) @ Id: 1.3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: -
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 1000 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 700mW (Ta)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: WSMini6-F1-B
- Package / Case: 6-SMD, Flat Leads
