NSBC114EPDXV6T1
onsemi
onsemi
TRANS PREBIAS NPN/PNP SOT563
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the NSBC114EPDXV6T1 by onsemi, a pre-biased BJT array engineered for efficiency and durability. This discrete semiconductor product features matched transistors with built-in bias resistors, simplifying circuit design and reducing component count. Perfect for space-constrained applications, the NSBC114EPDXV6T1 excels in automotive systems, power management modules, and communication devices. onsemi's commitment to quality ensures that each transistor array meets stringent performance standards, providing stable operation across a wide temperature range. Choose NSBC114EPDXV6T1 for superior signal processing and energy-efficient performance.
Specifications
- Product Status: Obsolete
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 10kOhms
- Resistor - Emitter Base (R2): 10kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 35 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 500mW
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
Related Products
Panasonic Electronic Components
DMG963H10R
Panasonic Electronic Components
DMG563020R
Panasonic Electronic Components
DMG9640N0R
Infineon Technologies
BCR108SE6327BTSA1
Panasonic Electronic Components
XN0421000L
Panasonic Electronic Components
DMA964070R
Panasonic Electronic Components
XN0111H00L
Panasonic Electronic Components
XP0221100L
Panasonic Electronic Components

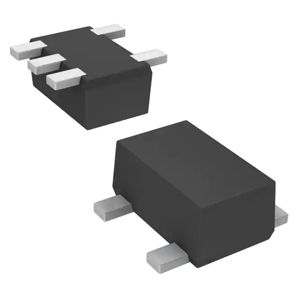

UP0121MG0L
