NSBC143ZPDXV6T5
onsemi
onsemi
TRANS PREBIAS NPN/PNP SOT563
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your designs with onsemi's NSBC143ZPDXV6T5, a pre-biased BJT array built for precision and efficiency. This transistor array simplifies circuit layout by incorporating bias resistors within the package, reducing assembly time and cost. The NSBC143ZPDXV6T5 is widely used in lighting systems, portable electronics, and automotive accessories. onsemi's innovative approach ensures high yield and consistent quality across all production batches. With excellent thermal management and low power consumption, the NSBC143ZPDXV6T5 is a smart choice for energy-sensitive applications.
Specifications
- Product Status: Obsolete
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 4.7kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 1mA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 500mW
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
Related Products
Toshiba Semiconductor and Storage
RN1673(TE85L,F)
Panasonic Electronic Components
XP0121200L
Diodes Incorporated
DDA122LH-7
onsemi
MUN5230DW1T1
Rohm Semiconductor

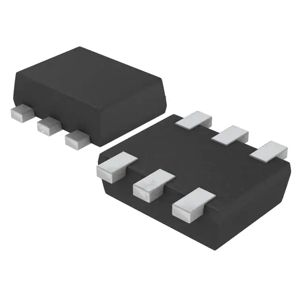

EMD9FHAT2R
Infineon Technologies
BCR22PNE6327BTSA1
Panasonic Electronic Components

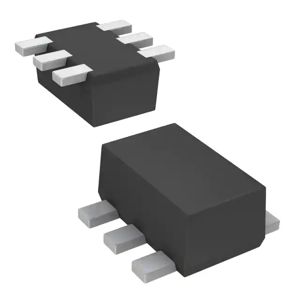

DMG964010R
