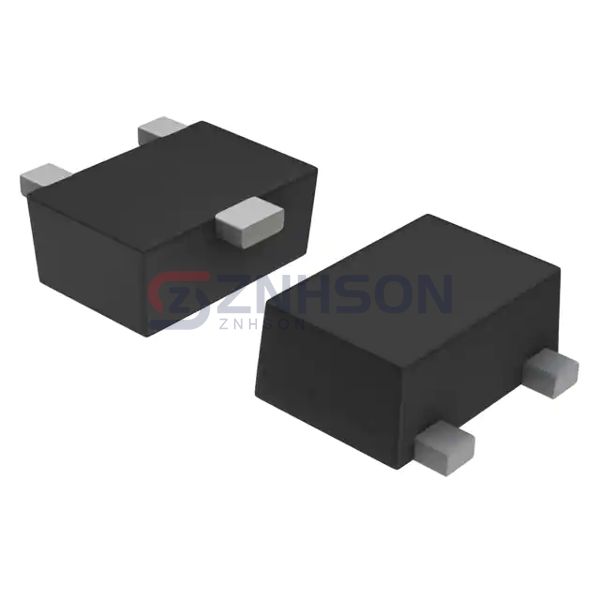

NSVDTC113EM3T5G
onsemi
onsemi
TRANS NPN 50V 0.1A SOT723
$0.06
Available to order
Reference Price (USD)
8,000+
$0.05082
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layout with onsemi's space-saving NSVDTC113EM3T5G. This pre-configured bipolar transistor eliminates external biasing components while delivering 250mW power dissipation. Applications span from smart home appliances to automotive lighting systems. onsemi combines 20+ years of semiconductor expertise with cutting-edge silicon technology in this robust solution.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 1 kOhms
- Resistor - Emitter Base (R2): 1 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 3 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 5mA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 260 mW
- Mounting Type: Surface Mount
- Package / Case: SOT-723
- Supplier Device Package: SOT-723
