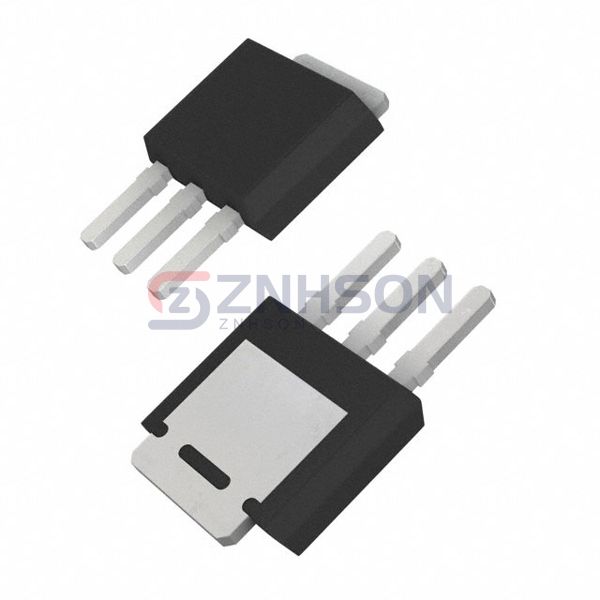

NTD23N03R-001
onsemi
onsemi
MOSFET N-CH 25V 3.8A/17.1A IPAK
$0.10
Available to order
Reference Price (USD)
1+
$0.10000
500+
$0.099
1000+
$0.098
1500+
$0.097
2000+
$0.096
2500+
$0.095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NTD23N03R-001 by onsemi is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the NTD23N03R-001 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 3.8A (Ta), 17.1A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4V, 5V
- Rds On (Max) @ Id, Vgs: 45mOhm @ 6A, 10V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.76 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 225 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 1.14W (Ta), 22.3W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: I-PAK
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
