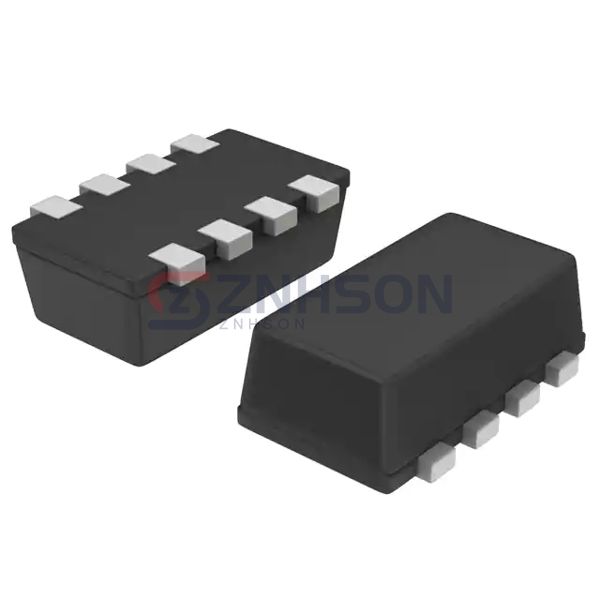

NTHD4P02FT1G
onsemi
onsemi
MOSFET P-CH 20V 2.2A CHIPFET
$0.31
Available to order
Reference Price (USD)
3,000+
$0.18380
6,000+
$0.17194
15,000+
$0.16008
30,000+
$0.15178
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NTHD4P02FT1G from onsemi sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to onsemi's NTHD4P02FT1G for their critical applications.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 2.2A (Tj)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 155mOhm @ 2.2A, 4.5V
- Vgs(th) (Max) @ Id: 1.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 300 pF @ 10 V
- FET Feature: Schottky Diode (Isolated)
- Power Dissipation (Max): 1.1W (Tj)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: ChipFET™
- Package / Case: 8-SMD, Flat Lead
