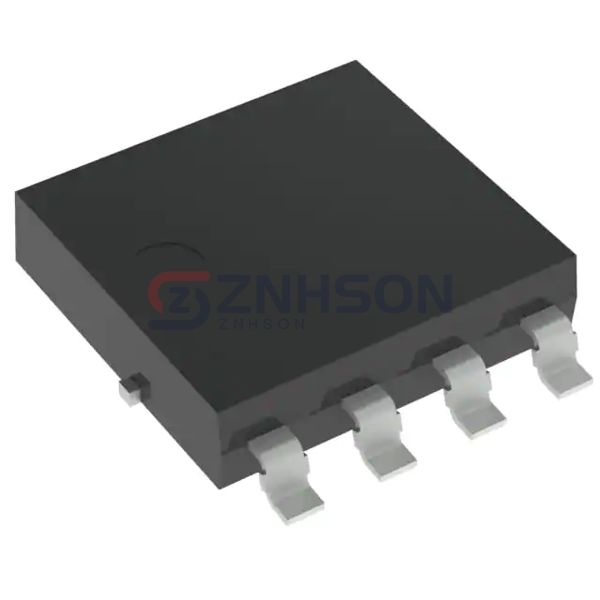

NTMJS1D5N04CLTWG
onsemi
onsemi
MOSFET N-CH 40V 38A/200A 8LFPAK
$4.90
Available to order
Reference Price (USD)
1+
$4.90000
500+
$4.851
1000+
$4.802
1500+
$4.753
2000+
$4.704
2500+
$4.655
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the NTMJS1D5N04CLTWG by onsemi, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The NTMJS1D5N04CLTWG stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose onsemi.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 38A (Ta), 200A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.4mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 2V @ 130µA
- Gate Charge (Qg) (Max) @ Vgs: 70 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4300 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 3.8W (Ta), 110W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-LFPAK
- Package / Case: SOT-1205, 8-LFPAK56
