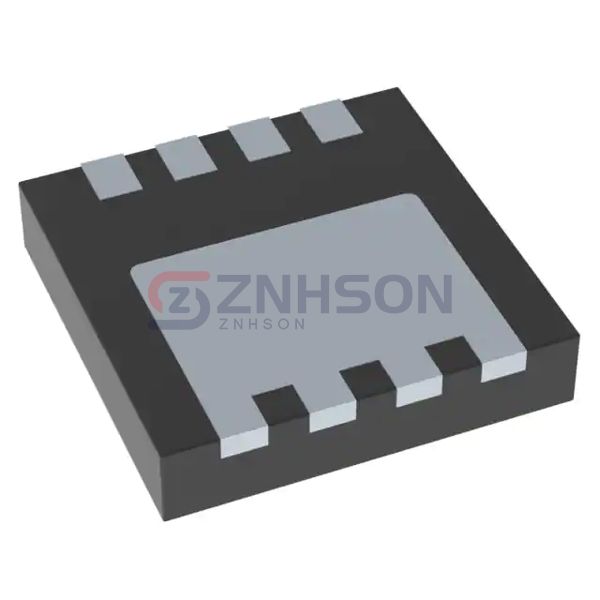

NTTFS2D1N04HLTWG
onsemi
onsemi
MOSFET N-CH 40V 24A/150A 8PQFN
$2.27
Available to order
Reference Price (USD)
1+
$2.27000
500+
$2.2473
1000+
$2.2246
1500+
$2.2019
2000+
$2.1792
2500+
$2.1565
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NTTFS2D1N04HLTWG by onsemi is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the NTTFS2D1N04HLTWG is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 24A (Ta), 150A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 2.1mOhm @ 23A, 10V
- Vgs(th) (Max) @ Id: 2V @ 120µA
- Gate Charge (Qg) (Max) @ Vgs: 43.6 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2745 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 2.2W (Ta), 83W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (3.3x3.3)
- Package / Case: 8-PowerWDFN
