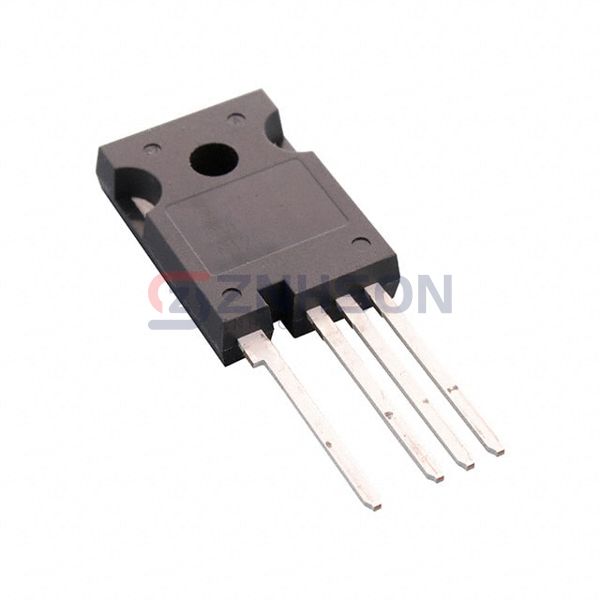

NVH4L020N120SC1
onsemi
onsemi
SICFET N-CH 1200V 102A TO247
$40.33
Available to order
Reference Price (USD)
1+
$40.33000
500+
$39.9267
1000+
$39.5234
1500+
$39.1201
2000+
$38.7168
2500+
$38.3135
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the NVH4L020N120SC1 by onsemi, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The NVH4L020N120SC1 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose onsemi.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 102A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 28mOhm @ 60A, 20V
- Vgs(th) (Max) @ Id: 4.3V @ 20mA
- Gate Charge (Qg) (Max) @ Vgs: 220 nC @ 20 V
- Vgs (Max): +25V, -15V
- Input Capacitance (Ciss) (Max) @ Vds: 2943 pF @ 800 V
- FET Feature: -
- Power Dissipation (Max): 510W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-4L
- Package / Case: TO-247-4
