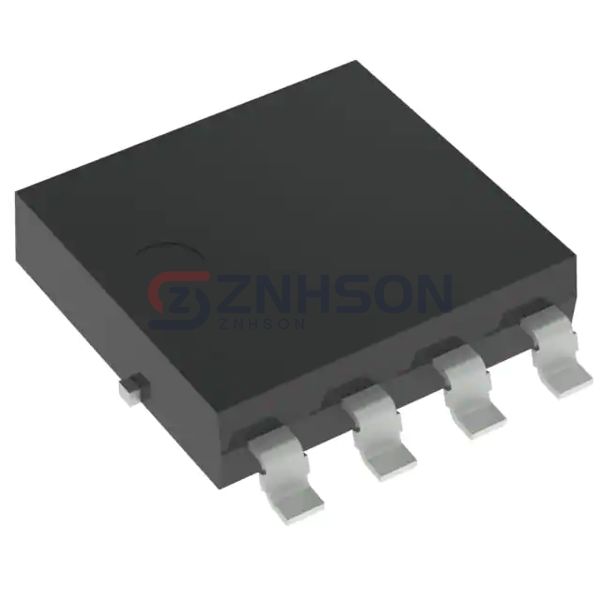

NVTYS005N04CLTWG
onsemi
onsemi
T6 40V N-CH LL IN LFPAK33
$0.88
Available to order
Reference Price (USD)
1+
$0.88001
500+
$0.8712099
1000+
$0.8624098
1500+
$0.8536097
2000+
$0.8448096
2500+
$0.8360095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the NVTYS005N04CLTWG by onsemi, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The NVTYS005N04CLTWG stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose onsemi.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 19A (Ta), 75A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 4.8mOhm @ 35A, 10V
- Vgs(th) (Max) @ Id: 2V @ 40µA
- Gate Charge (Qg) (Max) @ Vgs: 23.1 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1300 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta), 50W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-LFPAK
- Package / Case: SOT-1205, 8-LFPAK56
