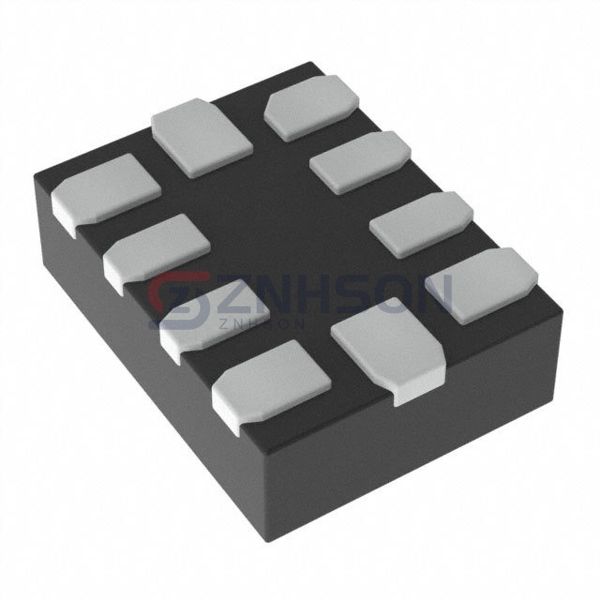

PI3USB4000D
Diodes Incorporated
Diodes Incorporated
USB2 SWITCH,U-QFN1520-10,T&R,3K
$1.57
Available to order
Reference Price (USD)
1+
$1.57000
500+
$1.5543
1000+
$1.5386
1500+
$1.5229
2000+
$1.5072
2500+
$1.4915
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PI3USB4000D from Diodes Incorporated's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The PI3USB4000D is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 1
- On-State Resistance (Max): 9Ohm
- Channel-to-Channel Matching (ΔRon): 500mOhm (Typ)
- Voltage - Supply, Single (V+): 2.7V ~ 5.5V
- Voltage - Supply, Dual (V±): 2.7V ~ 5.5V
- Switch Time (Ton, Toff) (Max): 100µs, 50ns
- -3db Bandwidth: 1GHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 5pF, 9pF
- Current - Leakage (IS(off)) (Max): 1µA
- Crosstalk: -35dB @ 240MHz
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN
- Supplier Device Package: 10-UQFN (1.5x2)
