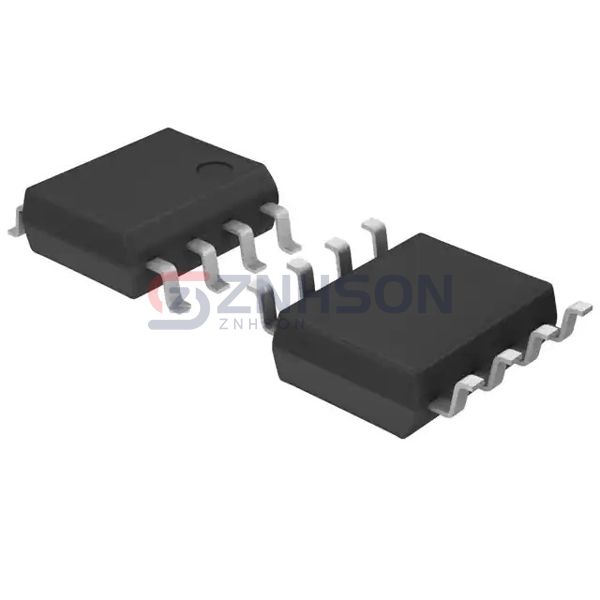

PJL9602_R2_00001
Panjit International Inc.
Panjit International Inc.
30V COMPLEMENTARY ENHANCEMENT MO
$0.72
Available to order
Reference Price (USD)
1+
$0.72000
500+
$0.7128
1000+
$0.7056
1500+
$0.6984
2000+
$0.6912
2500+
$0.684
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with the PJL9602_R2_00001, a premium Transistors - FETs, MOSFETs - Arrays product from Panjit International Inc.. This Discrete Semiconductor Products component is designed for optimal power handling and efficiency, featuring advanced technology to reduce switching losses. Suitable for applications such as DC-DC converters, audio amplifiers, and robotics, the PJL9602_R2_00001 delivers consistent and reliable operation. Panjit International Inc.'s dedication to excellence ensures this MOSFET array meets the highest industry standards.
Specifications
- Product Status: Active
- FET Type: N and P-Channel Complementary
- FET Feature: Standard
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 6.1A (Ta), 6A (Ta)
- Rds On (Max) @ Id, Vgs: 28mOhm @ 6A, 10V, 30mOhm @ 4A, 10V
- Vgs(th) (Max) @ Id: 2.1V @ 250µA, 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 7.8nC @ 10V, 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 343pF @ 15V, 870pF @ 15V
- Power - Max: 1.7W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOP
