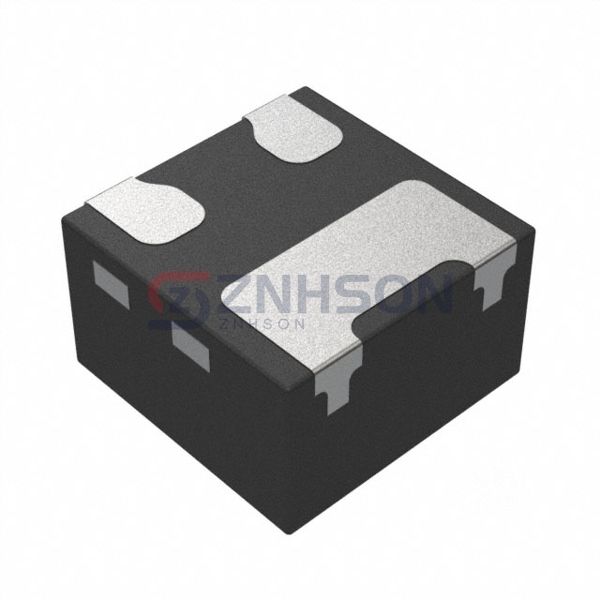

PMH950UPEH
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET P-CH 20V 530MA DFN0606-3
$0.39
Available to order
Reference Price (USD)
1+
$0.39000
500+
$0.3861
1000+
$0.3822
1500+
$0.3783
2000+
$0.3744
2500+
$0.3705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PMH950UPEH by Nexperia USA Inc. is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the PMH950UPEH is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 530mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.2V, 4.5V
- Rds On (Max) @ Id, Vgs: 1.4Ohm @ 500mA, 4.5V
- Vgs(th) (Max) @ Id: 0.95V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.5 nC @ 4 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 36 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 370mW (Ta), 2.2W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN0606-3
- Package / Case: 3-XFDFN
Related Products
Infineon Technologies
IPB60R165CPATMA1
Infineon Technologies
IRF2804PBF
Vishay Siliconix
SQJ460AEP-T2_GE3
Vishay Siliconix

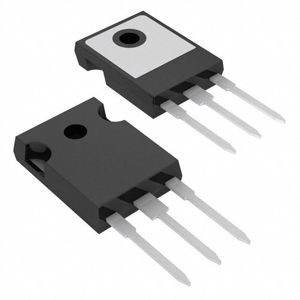

SIHG21N60EF-GE3
Infineon Technologies

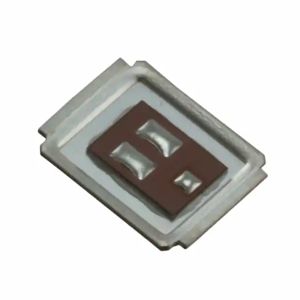

IRF8304MTRPBF
Vishay Siliconix

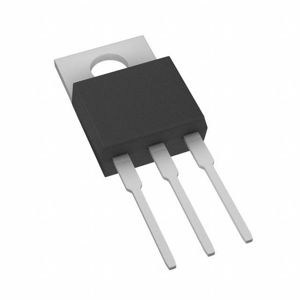

IRF9Z30PBF-BE3
