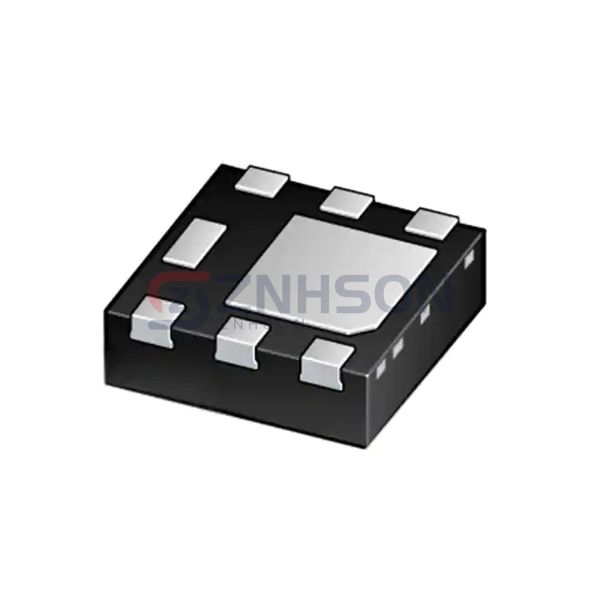

PMPB20XNEAZ
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET N-CH 20V 7.5A DFN2020MD-6
$0.45
Available to order
Reference Price (USD)
3,000+
$0.20097
6,000+
$0.18967
15,000+
$0.17836
30,000+
$0.17044
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the PMPB20XNEAZ by Nexperia USA Inc., a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The PMPB20XNEAZ stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Nexperia USA Inc..
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 7.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 20mOhm @ 7.5A, 4.5V
- Vgs(th) (Max) @ Id: 1.25V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 15 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 930 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 460mW (Ta), 12.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN2020MD-6
- Package / Case: 6-UDFN Exposed Pad
Related Products
Vishay Siliconix
SIHA24N80AE-GE3
Diodes Incorporated
DMP4015SSSQ-13
Vishay Siliconix
IRF830APBF
Taiwan Semiconductor Corporation
TSM220NB06CR RLG
IXYS
IXFR20N80P
Toshiba Semiconductor and Storage
TK11A50D(STA4,Q,M)
Vishay Siliconix
SI2318CDS-T1-GE3
Fairchild Semiconductor
FQH90N10V2
Microchip Technology

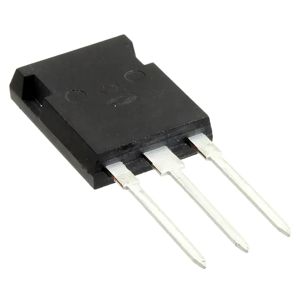

APT5020BVRG
