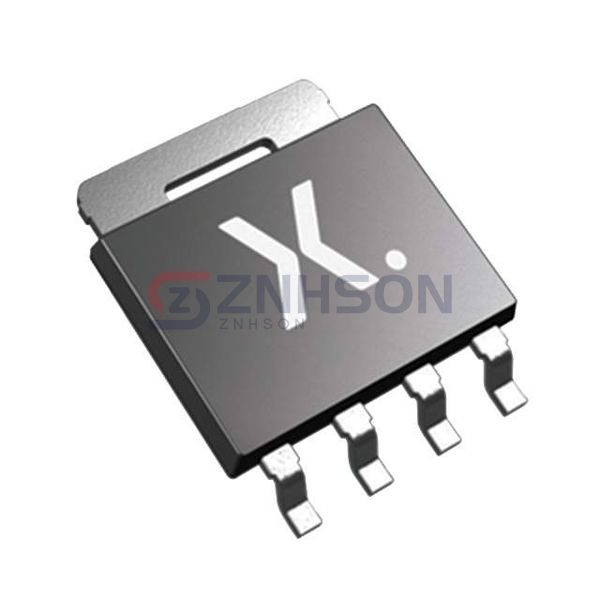

PSMN015-100YLX
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET N-CH 100V 69A LFPAK56
$1.65
Available to order
Reference Price (USD)
1,500+
$0.41497
3,000+
$0.38731
7,500+
$0.36794
10,500+
$0.35411
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the PSMN015-100YLX by Nexperia USA Inc., a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the PSMN015-100YLX is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 69A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
- Rds On (Max) @ Id, Vgs: 14.7mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2.1V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 86.3 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 6139 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 195W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK56, Power-SO8
- Package / Case: SC-100, SOT-669
