RGCL80TS60DGC13
Rohm Semiconductor
Rohm Semiconductor
LOW VCE(SAT) TYPE, 600V 40A, FRD
$6.75
Available to order
Reference Price (USD)
1+
$6.75000
500+
$6.6825
1000+
$6.615
1500+
$6.5475
2000+
$6.48
2500+
$6.4125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The RGCL80TS60DGC13 by Rohm Semiconductor is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With Rohm Semiconductor's reputation for quality, the RGCL80TS60DGC13 is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 65 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 40A
- Power - Max: 148 W
- Switching Energy: 1.11mJ (on), 1.68mJ (off)
- Input Type: Standard
- Gate Charge: 98 nC
- Td (on/off) @ 25°C: 53ns/227ns
- Test Condition: 400V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 58 ns
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole

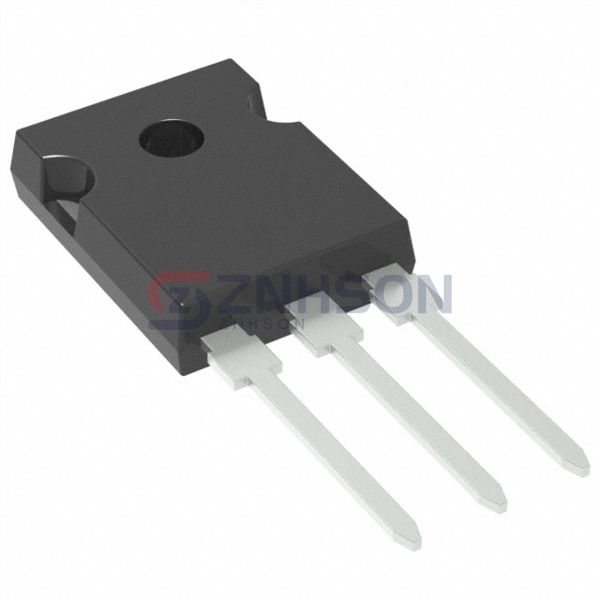

- Package / Case: TO-247-3
- Supplier Device Package: TO-247G
