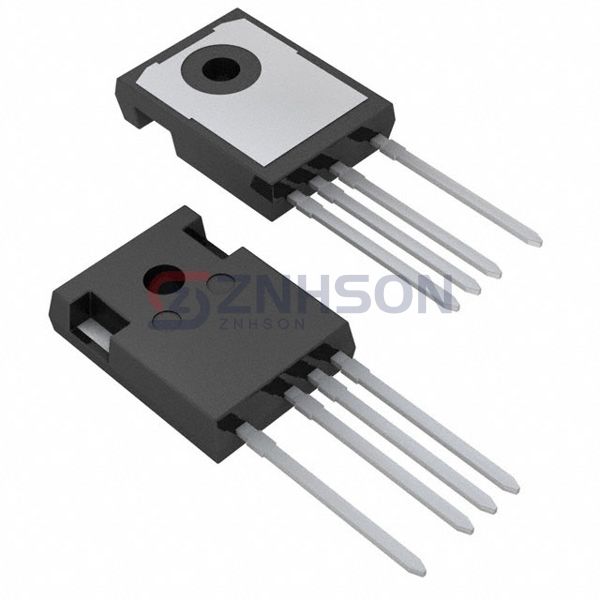

STGW40H65DFB-4
STMicroelectronics
STMicroelectronics
IGBT
$5.44
Available to order
Reference Price (USD)
1+
$5.35000
10+
$4.84000
100+
$4.02750
600+
$3.47940
1,200+
$2.98800
3,000+
$2.86200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the STGW40H65DFB-4 Single IGBT transistor by STMicroelectronics, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the STGW40H65DFB-4 ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the STGW40H65DFB-4 for unmatched power control.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 40A
- Power - Max: 283 W
- Switching Energy: 200µJ (on), 410µJ (off)
- Input Type: Standard
- Gate Charge: 210 nC
- Td (on/off) @ 25°C: 40ns/142ns
- Test Condition: 400V, 40A, 5Ohm, 15V
- Reverse Recovery Time (trr): 62 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-4
- Supplier Device Package: TO-247-4
