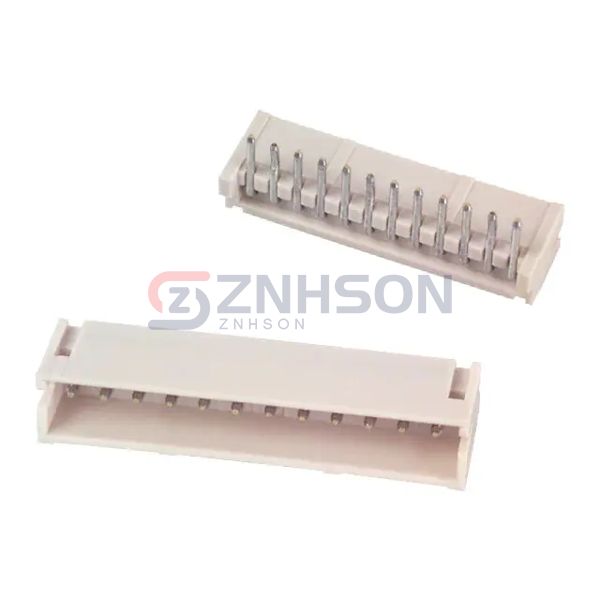

S12B-ZR(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER R/A 12POS 1.5MM
$0.55
Available to order
Reference Price (USD)
1+
$0.54000
10+
$0.50400
100+
$0.38650
500+
$0.33610
1,000+
$0.27729
5,000+
$0.24368
10,000+
$0.22687
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The S12B-ZR(LF)(SN) by JST Sales America Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the S12B-ZR(LF)(SN) supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. JST Sales America Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.094" (2.40mm)
- Contact Length - Post: 0.106" (2.69mm)
- Overall Contact Length: -
- Insulation Height: 0.146" (3.70mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A
- Voltage Rating: 50V
Related Products
Molex
0039300060
CNC Tech
3522-12-0101-99
TE Connectivity AMP Connectors
1-2842236-6
Molex
0702800757
Molex
0010845120
Molex
35312-0460
Samtec Inc.
FTSH-121-04-L-DV-A-P-TR
Samtec Inc.

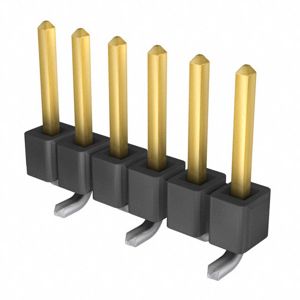

TSM-106-01-SM-SV
Samtec Inc.

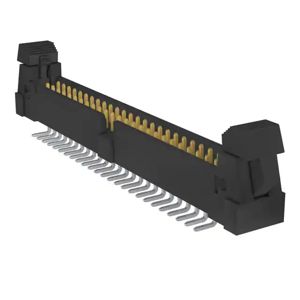

EHT-125-01-SM-D-SM
