SGS5N60RUFDTU
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 8A, 600V, N-CHANNEL
$0.37
Available to order
Reference Price (USD)
1+
$0.37000
500+
$0.3663
1000+
$0.3626
1500+
$0.3589
2000+
$0.3552
2500+
$0.3515
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SGS5N60RUFDTU Single IGBT transistor by Fairchild Semiconductor is a high-performance component in the Discrete Semiconductor Products category. Featuring low switching losses and high reliability, it is perfect for demanding applications like medical imaging, defense systems, and data centers. The SGS5N60RUFDTU ensures precise power control and long-term stability. With Fairchild Semiconductor's reputation for excellence, this IGBT is a trusted choice for engineers worldwide. Incorporate SGS5N60RUFDTU into your projects for superior results.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 8 A
- Current - Collector Pulsed (Icm): 15 A
- Vce(on) (Max) @ Vge, Ic: 2.8V @ 15V, 5A
- Power - Max: 35 W
- Switching Energy: 88µJ (on), 107µJ (off)
- Input Type: Standard
- Gate Charge: 16 nC
- Td (on/off) @ 25°C: 13ns/34ns
- Test Condition: 300V, 5A, 40Ohm, 15V
- Reverse Recovery Time (trr): 55 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole

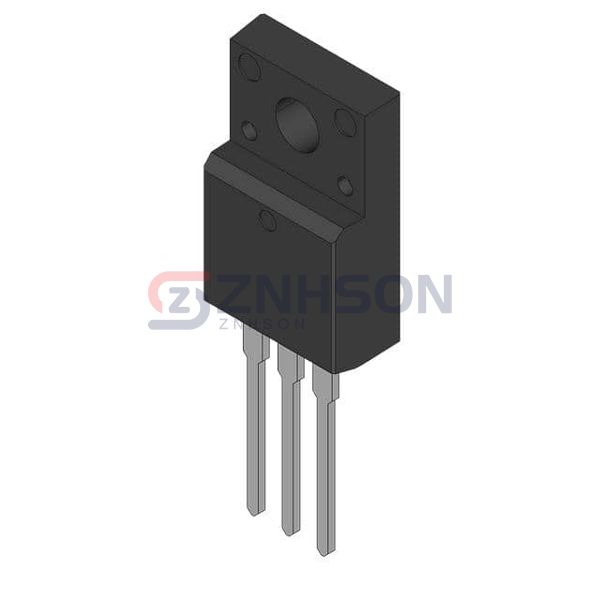

- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220F-3
