STGB30M65DF2
STMicroelectronics
STMicroelectronics
IGBT 650V 30A D2PAK
$3.37
Available to order
Reference Price (USD)
1,000+
$2.10210
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGB30M65DF2 by STMicroelectronics is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With STMicroelectronics's reputation for quality, the STGB30M65DF2 is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 60 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 30A
- Power - Max: 258 W
- Switching Energy: 300µJ (on), 960µJ (off)
- Input Type: Standard
- Gate Charge: 80 nC
- Td (on/off) @ 25°C: 31.6ns/115ns
- Test Condition: 400V, 30A, 10Ohm, 15V
- Reverse Recovery Time (trr): 140 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D²PAK (TO-263)
Related Products
Infineon Technologies
IGP15N60TXKSA1
onsemi
FGH50N6S2D
IXYS
IXYK140N90C3
onsemi
NGTG15N120FL2WG
Rohm Semiconductor
RGW80TK65GVC11
Rohm Semiconductor
RGC80TSX8RGC11
Infineon Technologies
AUIRGP4062D1
onsemi
FGH75T65SHD-F155

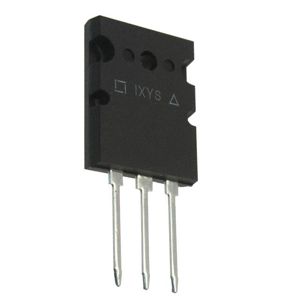

IXYS
