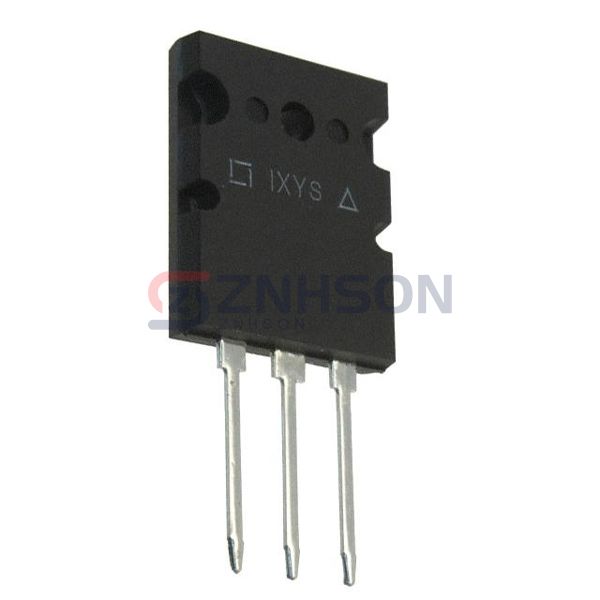

IXGK120N120A3
IXYS
IXYS
IGBT 1200V 240A 830W TO264
$33.85
Available to order
Reference Price (USD)
1+
$26.10000
10+
$24.14500
25+
$22.18760
100+
$20.62140
250+
$18.92468
500+
$18.01108
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXGK120N120A3 by IXYS is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With IXYS's reputation for quality, the IXGK120N120A3 is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 240 A
- Current - Collector Pulsed (Icm): 600 A
- Vce(on) (Max) @ Vge, Ic: 2.2V @ 15V, 100A
- Power - Max: 830 W
- Switching Energy: 10mJ (on), 33mJ (off)
- Input Type: Standard
- Gate Charge: 420 nC
- Td (on/off) @ 25°C: 40ns/490ns
- Test Condition: 960V, 100A, 1Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: TO-264 (IXGK)
