STGF7NB60SL
STMicroelectronics
STMicroelectronics
IGBT 600V 15A 25W TO220FP
$2.31
Available to order
Reference Price (USD)
1+
$1.60000
50+
$1.35180
100+
$1.15180
500+
$0.94632
1,000+
$0.78409
2,500+
$0.73001
5,000+
$0.72100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGF7NB60SL by STMicroelectronics is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With STMicroelectronics's reputation for quality, the STGF7NB60SL is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 15 A
- Current - Collector Pulsed (Icm): 20 A
- Vce(on) (Max) @ Vge, Ic: 1.6V @ 4.5V, 7A
- Power - Max: 25 W
- Switching Energy: 4.1mJ (off)
- Input Type: Standard
- Gate Charge: 16 nC
- Td (on/off) @ 25°C: 1.1µs/5.2µs
- Test Condition: 480V, 7A, 1kOhm, 5V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220FP
Related Products
Harris Corporation
HGT1S12N60C3S9AR4501
Rohm Semiconductor
RGTH40TS65DGC13
onsemi
FGHL75T65MQD
Harris Corporation
HGTG7N60A4D
onsemi
SGP23N60UFTU
IXYS
IXXK100N60B3H1
onsemi
NGTB45N60S2WG
IXYS
IXGH12N120A3
Infineon Technologies

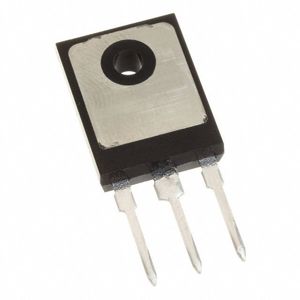

IGW40N65F5FKSA1
