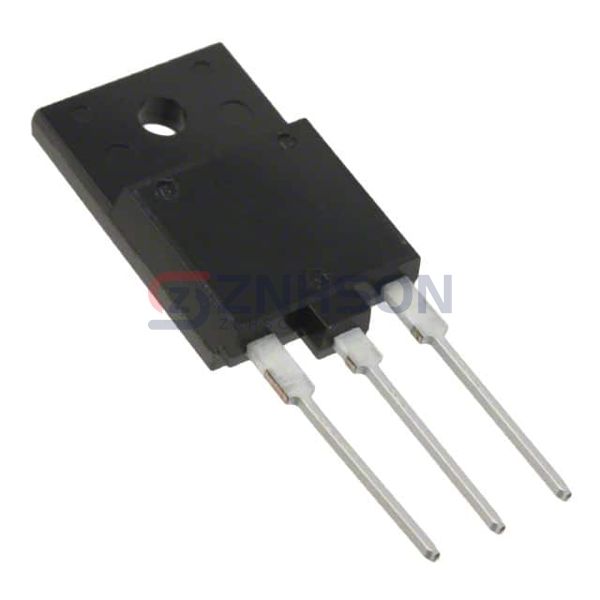

STGFW20V60F
STMicroelectronics
STMicroelectronics
IGBT 600V 40A 52W TO3PF
$2.65
Available to order
Reference Price (USD)
1+
$3.20000
30+
$2.71700
120+
$2.35467
510+
$2.00445
1,020+
$1.69050
2,520+
$1.61000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGFW20V60F by STMicroelectronics is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With STMicroelectronics's reputation for quality, the STGFW20V60F is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 80 A
- Vce(on) (Max) @ Vge, Ic: 2.2V @ 15V, 20A
- Power - Max: 52 W
- Switching Energy: 200µJ (on), 130µJ (off)
- Input Type: Standard
- Gate Charge: 116 nC
- Td (on/off) @ 25°C: 38ns/149ns
- Test Condition: 400V, 20A, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3 Full Pack
- Supplier Device Package: TO-3PF
