STGW40NC60KD
STMicroelectronics
STMicroelectronics
IGBT 600V 70A 250W TO247
$5.26
Available to order
Reference Price (USD)
1+
$4.44000
30+
$3.77067
120+
$3.26783
510+
$2.78182
1,020+
$2.34612
2,520+
$2.23440
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with the STGW40NC60KD Single IGBT transistor from STMicroelectronics. This Discrete Semiconductor Product is engineered for precision and efficiency, offering superior thermal performance and low EMI characteristics. Ideal for applications like electric vehicle charging stations, renewable energy systems, and industrial automation, the STGW40NC60KD delivers consistent and reliable operation. Trust STMicroelectronics's expertise in semiconductor technology to enhance your power management solutions with this high-quality IGBT.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 70 A
- Current - Collector Pulsed (Icm): 220 A
- Vce(on) (Max) @ Vge, Ic: 2.7V @ 15V, 30A
- Power - Max: 250 W
- Switching Energy: 595µJ (on), 716µJ (off)
- Input Type: Standard
- Gate Charge: 135 nC
- Td (on/off) @ 25°C: 46ns/164ns
- Test Condition: 480V, 30A, 10Ohm, 15V
- Reverse Recovery Time (trr): 45 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole

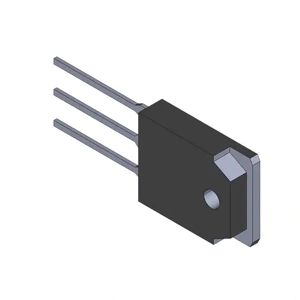

- Package / Case: TO-247-3
- Supplier Device Package: TO-247 Long Leads
