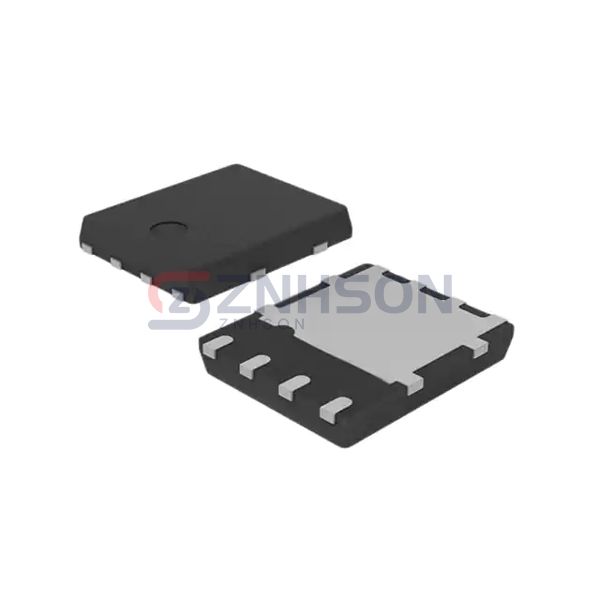

STL7N80K5
STMicroelectronics
STMicroelectronics
MOSFET N-CH 800V 3.6A POWERFLAT
$2.56
Available to order
Reference Price (USD)
3,000+
$1.22275
6,000+
$1.18260
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STL7N80K5 single MOSFET from STMicroelectronics is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the STL7N80K5 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 3.6A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.2Ohm @ 3A, 10V
- Vgs(th) (Max) @ Id: 5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 13.4 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 360 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 42W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
Related Products
onsemi
NTB5412NT4G
Rohm Semiconductor
RSR025N05HZGTL
Toshiba Semiconductor and Storage
TK1K7A60F,S4X
Infineon Technologies

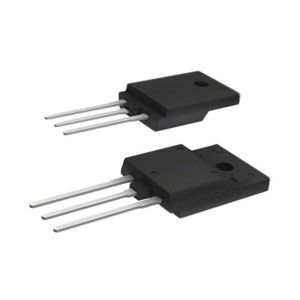

IPA65R1K0CEXKSA1
Fairchild Semiconductor

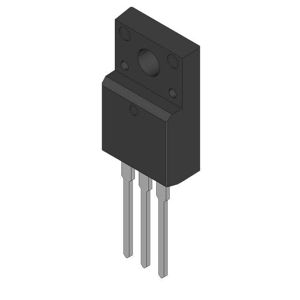

FQPF4N60
Alpha & Omega Semiconductor Inc.

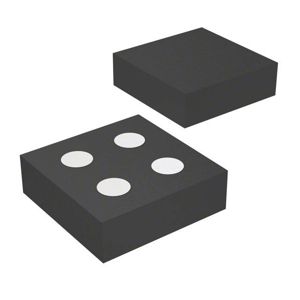

AOC2421
Diodes Incorporated
DMN65D8LQ-7
Nexperia USA Inc.

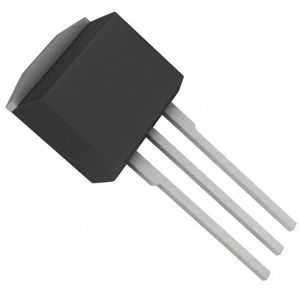

PSMN3R0-60ES,127
Infineon Technologies

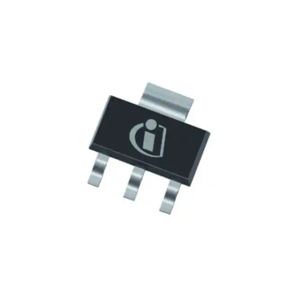

ISP20EP10LMXTSA1
