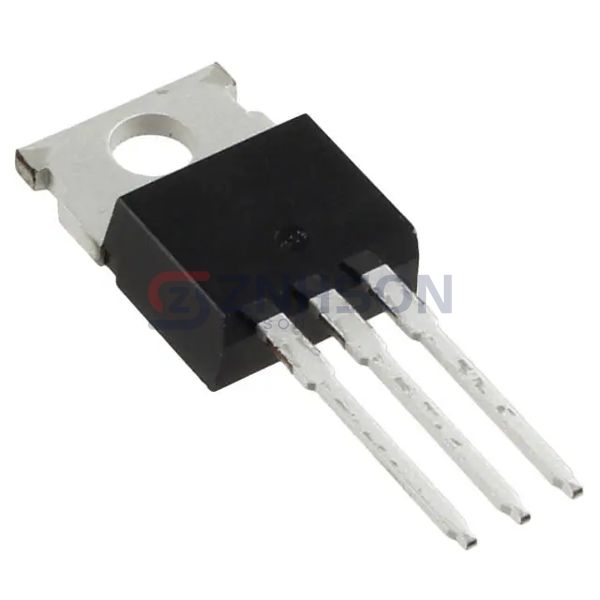

TK22E10N1,S1X
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N CH 100V 52A TO220
$1.42
Available to order
Reference Price (USD)
1+
$1.37000
50+
$1.09200
100+
$0.95550
500+
$0.74100
1,000+
$0.58500
2,500+
$0.54600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the TK22E10N1,S1X from Toshiba Semiconductor and Storage, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the TK22E10N1,S1X ensures reliable performance in demanding environments. Upgrade your circuit designs with Toshiba Semiconductor and Storage's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 52A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 13.8mOhm @ 11A, 10V
- Vgs(th) (Max) @ Id: 4V @ 300µA
- Gate Charge (Qg) (Max) @ Vgs: 28 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1800 pF @ 50 V
- FET Feature: -
- Power Dissipation (Max): 72W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220
- Package / Case: TO-220-3
