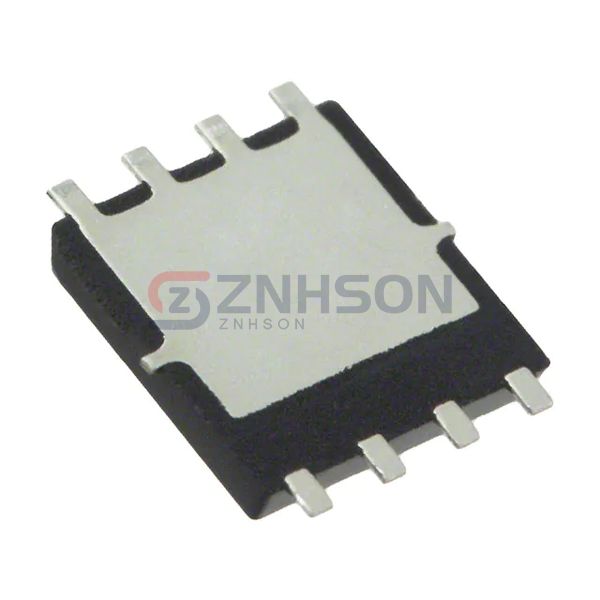

TPH14006NH,L1Q
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N CH 60V 14A 8-SOP ADV
$1.09
Available to order
Reference Price (USD)
5,000+
$0.42000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the TPH14006NH,L1Q from Toshiba Semiconductor and Storage, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the TPH14006NH,L1Q ensures reliable performance in demanding environments. Upgrade your circuit designs with Toshiba Semiconductor and Storage's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 14A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 6.5V, 10V
- Rds On (Max) @ Id, Vgs: 14mOhm @ 7A, 10V
- Vgs(th) (Max) @ Id: 4V @ 200µA
- Gate Charge (Qg) (Max) @ Vgs: 16 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1300 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 1.6W (Ta), 32W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOP Advance (5x5)
- Package / Case: 8-PowerVDFN
Related Products
NXP USA Inc.
NX3008PBKT,115
IXYS
IXFN44N80P
Diodes Incorporated
DMN2710UTQ-13
STMicroelectronics
STB47N50DM6AG
onsemi
VN2222LLRL
onsemi
NTMFS4121NT1G
Micro Commercial Co
SI3420A-TP
Wolfspeed, Inc.
C3M0025065J1
Panjit International Inc.

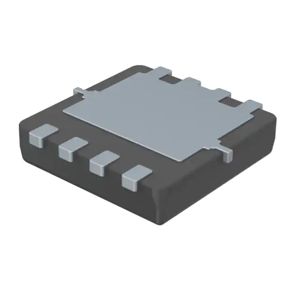

PJQ4460AP-AU_R2_000A1
