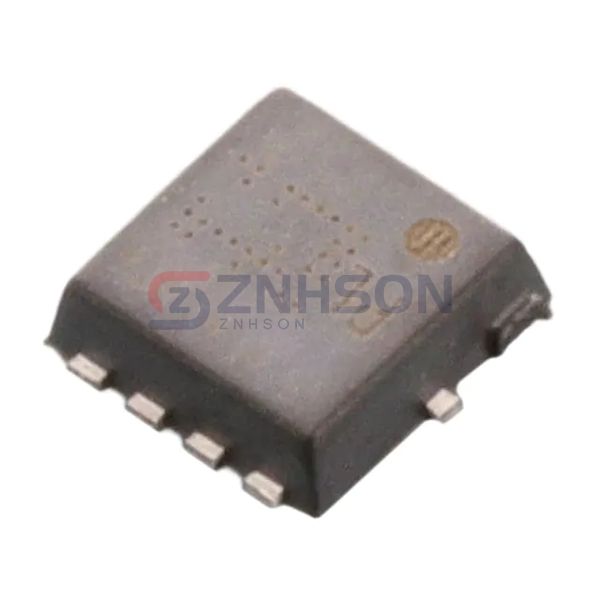

TPN11006PL,LQ
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N-CH 60V 26A 8TSON
$0.71
Available to order
Reference Price (USD)
1+
$0.71000
500+
$0.7029
1000+
$0.6958
1500+
$0.6887
2000+
$0.6816
2500+
$0.6745
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the TPN11006PL,LQ by Toshiba Semiconductor and Storage, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the TPN11006PL,LQ is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 26A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 11.4mOhm @ 13A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 200µA
- Gate Charge (Qg) (Max) @ Vgs: 17 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1625 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 610mW (Ta), 61W (Tc)
- Operating Temperature: 175°C
- Mounting Type: Surface Mount
- Supplier Device Package: 8-TSON Advance (3.1x3.1)
- Package / Case: 8-PowerVDFN
