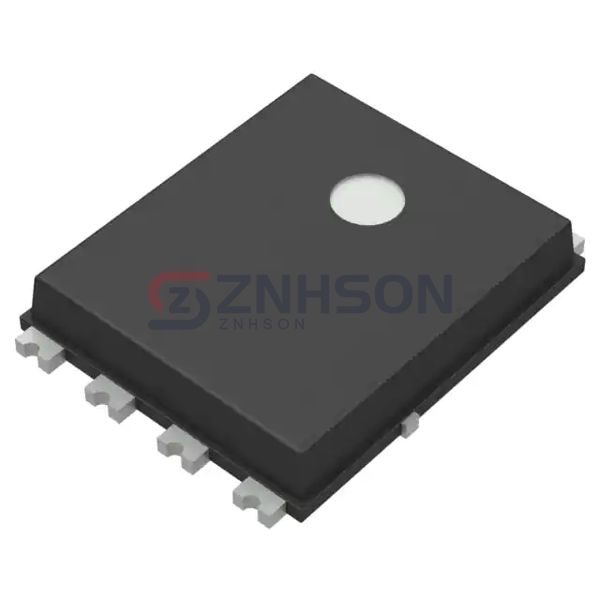

TQM110NB04CR RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CH 40V 12A/54A 8PDFNU
$2.69
Available to order
Reference Price (USD)
1+
$2.69000
500+
$2.6631
1000+
$2.6362
1500+
$2.6093
2000+
$2.5824
2500+
$2.5555
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TQM110NB04CR RLG single MOSFET from Taiwan Semiconductor Corporation is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the TQM110NB04CR RLG is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 12A (Ta), 54A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 7V, 10V
- Rds On (Max) @ Id, Vgs: 11mOhm @ 12A, 10V
- Vgs(th) (Max) @ Id: 3.8V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1352 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta), 68W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount, Wettable Flank
- Supplier Device Package: 8-PDFNU (5x6)
- Package / Case: 8-PowerTDFN
