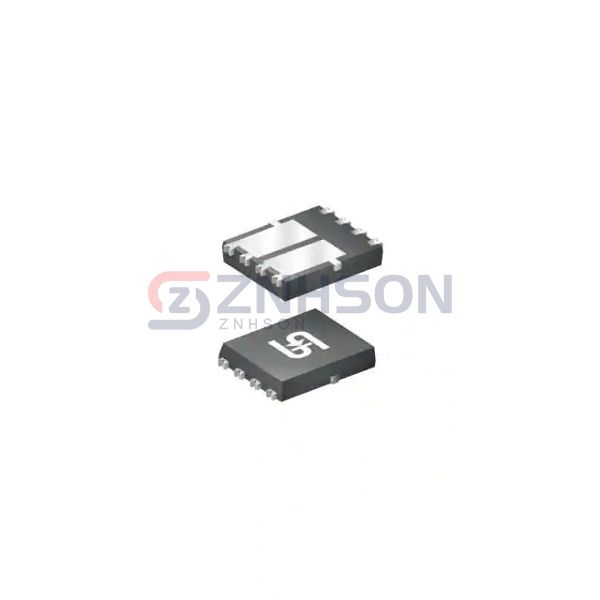

TSM032NH04LCR RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
40V, 81A, SINGLE N-CHANNEL POWER
$4.01
Available to order
Reference Price (USD)
1+
$4.01000
500+
$3.9699
1000+
$3.9298
1500+
$3.8897
2000+
$3.8496
2500+
$3.8095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM032NH04LCR RLG single MOSFET from Taiwan Semiconductor Corporation is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the TSM032NH04LCR RLG is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 25A (Ta), 81A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.2mOhm @ 40A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 50 nC @ 10 V
- Vgs (Max): ±16V
- Input Capacitance (Ciss) (Max) @ Vds: 3007 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 115W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PDFNU (5x6)
- Package / Case: 8-PowerTDFN
Related Products
NXP USA Inc.
PSMN010-25YLC,115
onsemi
FDS8638
PN Junction Semiconductor

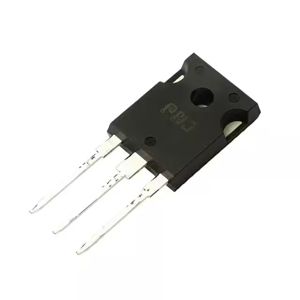

P3M12080K3
Texas Instruments
CSD16321Q5
Infineon Technologies
BSC265N10LSFGATMA1
Vishay Siliconix
IRF634STRLPBF
Nexperia USA Inc.
PMBF170,215
Fairchild Semiconductor
IRFR430BTM
Toshiba Semiconductor and Storage

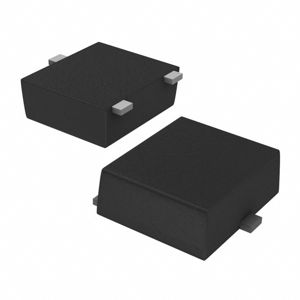

SSM3J114TU(TE85L)
