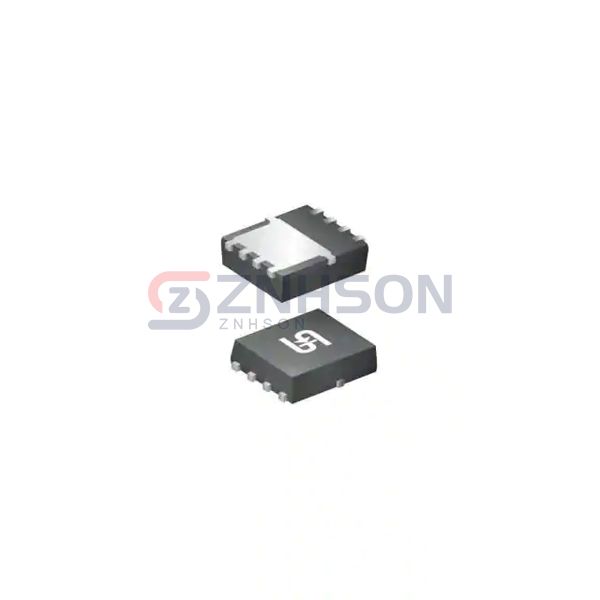

TSM056NH04LCV RGG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
40V, 54A, SINGLE N-CHANNEL POWER
$3.04
Available to order
Reference Price (USD)
1+
$3.04000
500+
$3.0096
1000+
$2.9792
1500+
$2.9488
2000+
$2.9184
2500+
$2.888
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM056NH04LCV RGG from Taiwan Semiconductor Corporation sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Taiwan Semiconductor Corporation's TSM056NH04LCV RGG for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 16A (Ta), 54A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 5.6mOhm @ 27A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 33 nC @ 10 V
- Vgs (Max): ±16V
- Input Capacitance (Ciss) (Max) @ Vds: 2076 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 34W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PDFN (3.1x3.1)
- Package / Case: 8-PowerWDFN
Related Products
Panjit International Inc.
PJD6N10A_L2_00001
IXYS
IXTP2N100P
NXP USA Inc.
BUK958R5-40E,127
Infineon Technologies
IPAN60R600P7SXKSA1
Vishay Siliconix
IRFI530GPBF
Infineon Technologies
ISC027N10NM6ATMA1
Infineon Technologies
IPU60R1K4C6
Rohm Semiconductor

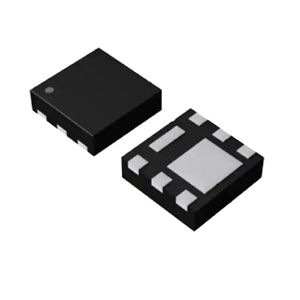

RF4G060ATTCR
