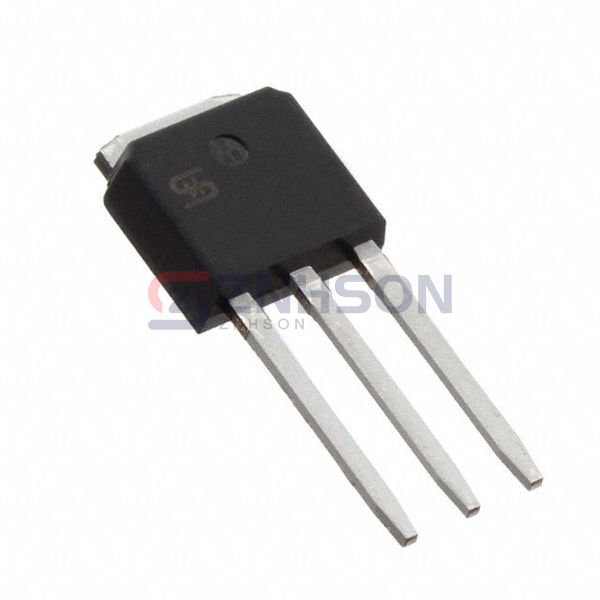

TSM170N06CH C5G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CHANNEL 60V 38A TO251
$1.07
Available to order
Reference Price (USD)
1+
$0.85000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM170N06CH C5G single MOSFET from Taiwan Semiconductor Corporation is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the TSM170N06CH C5G is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 38A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 17mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 28.5 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 900 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 46W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-251 (IPAK)
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
