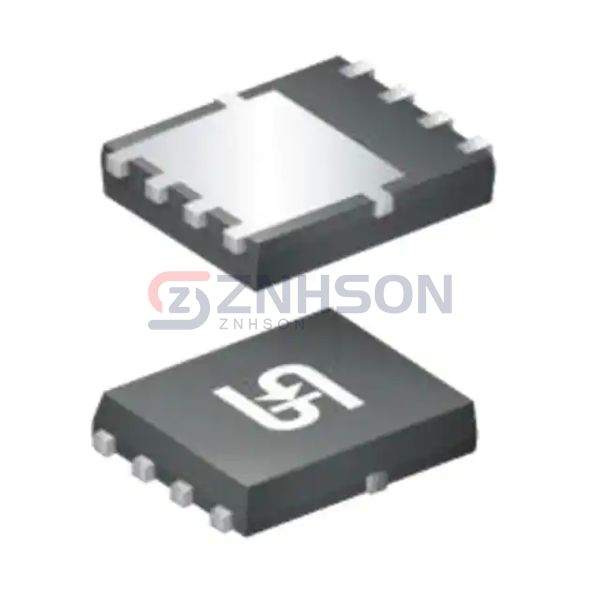

TSM230N06PQ56 RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CH 60V 44A 8PDFN
$0.68
Available to order
Reference Price (USD)
2,500+
$0.21994
5,000+
$0.20576
12,500+
$0.19866
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the TSM230N06PQ56 RLG single MOSFET from Taiwan Semiconductor Corporation. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust Taiwan Semiconductor Corporation's TSM230N06PQ56 RLG for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Not For New Designs
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 44A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 23mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 28 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1680 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 83W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PDFN (5x6)
- Package / Case: 8-PowerTDFN
