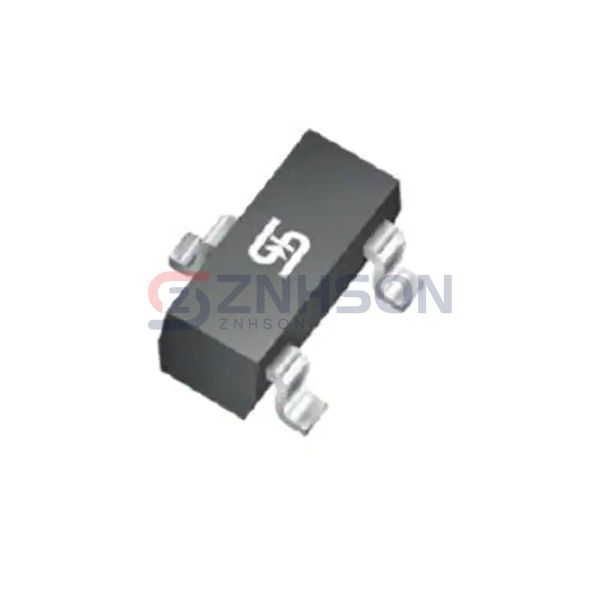

TSM250N02CX RFG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CHANNEL 20V 5.8A SOT23
$0.83
Available to order
Reference Price (USD)
3,000+
$0.09558
6,000+
$0.09027
15,000+
$0.08231
30,000+
$0.07700
75,000+
$0.07434
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the TSM250N02CX RFG from Taiwan Semiconductor Corporation, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the TSM250N02CX RFG ensures reliable performance in demanding environments. Upgrade your circuit designs with Taiwan Semiconductor Corporation's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 5.8A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 25mOhm @ 4A, 4.5V
- Vgs(th) (Max) @ Id: 800mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 7.7 nC @ 4.5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 535 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.56W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23
- Package / Case: TO-236-3, SC-59, SOT-23-3
