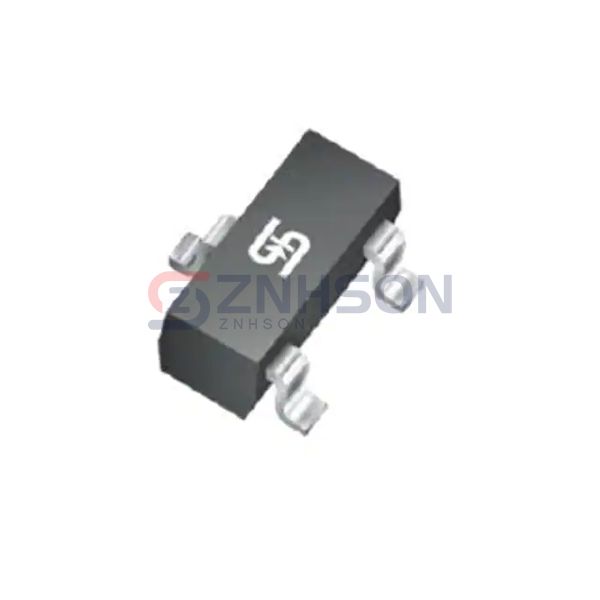

TSM320N03CX RFG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CHANNEL 30V 5.5A SOT23
$0.94
Available to order
Reference Price (USD)
3,000+
$0.10494
6,000+
$0.09911
15,000+
$0.09037
30,000+
$0.08454
75,000+
$0.08162
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM320N03CX RFG by Taiwan Semiconductor Corporation is a standout in the Transistors - FETs, MOSFETs - Single segment, offering exceptional power handling and efficiency. Designed for precision and reliability, this MOSFET is widely used in audio amplifiers, DC-DC converters, and battery management systems. With advanced features like avalanche energy resistance and low leakage current, it's a top pick for professionals in the Discrete Semiconductor Products field. Choose Taiwan Semiconductor Corporation for innovation you can depend on.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 5.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 32mOhm @ 4A, 4.5V
- Vgs(th) (Max) @ Id: 900mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 8.9 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 792 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 1.8W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23
- Package / Case: TO-236-3, SC-59, SOT-23-3
