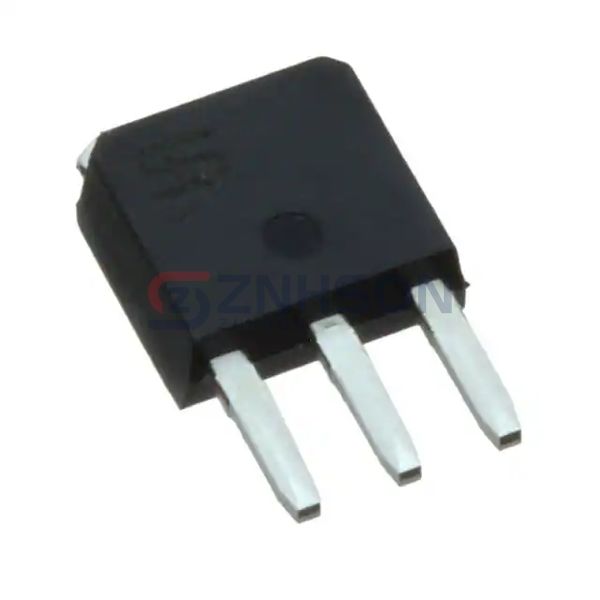

TSM480P06CH X0G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET P-CHANNEL 60V 20A TO251
$2.28
Available to order
Reference Price (USD)
1+
$0.71000
10+
$0.59800
100+
$0.44880
500+
$0.32912
1,875+
$0.25432
3,750+
$0.23188
5,625+
$0.21692
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the TSM480P06CH X0G by Taiwan Semiconductor Corporation, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The TSM480P06CH X0G stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Taiwan Semiconductor Corporation.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 48mOhm @ 8A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 22.4 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1250 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 66W (Tc)
- Operating Temperature: -50°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-251 (IPAK)
- Package / Case: TO-251-3 Stub Leads, IPak
