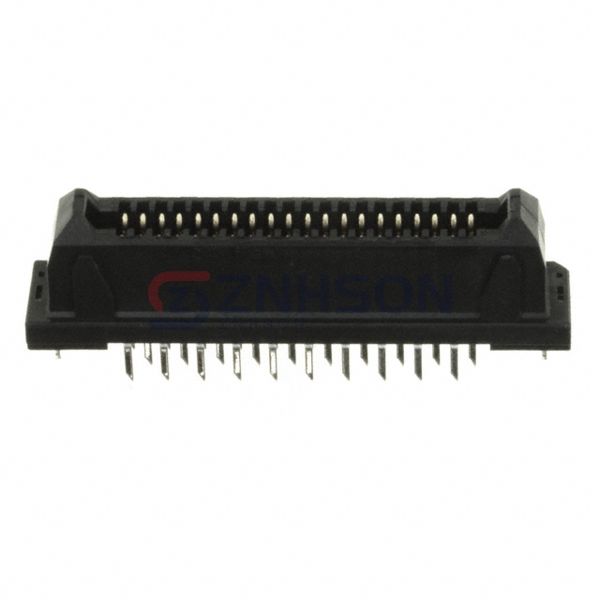

TX24-40R-6ST-H1E
JAE Electronics
JAE Electronics
CONN RCPT 40POS VERT GOLD
$1.12
Available to order
Reference Price (USD)
864+
$0.91800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TX24-40R-6ST-H1E by JAE Electronics is a high-quality rectangular connector perfect for array and edge-type board-to-board applications. Its mezzanine design provides excellent electrical performance and mechanical stability, even in challenging conditions. These connectors are commonly employed in medical imaging devices, telecommunications infrastructure, and defense electronics. For instance, they are used in MRI machines, base station antennas, and unmanned aerial vehicles. With TX24-40R-6ST-H1E, you can trust in a connector that meets the rigorous demands of modern technology.
Specifications
- Product Status: Active
- Connector Type: Receptacle, Outer Shroud Contacts
- Number of Positions: 40
- Pitch: 0.050" (1.27mm)
- Number of Rows: 2
- Mounting Type: Through Hole
- Features: Board Lock
- Contact Finish: Gold
- Contact Finish Thickness: 4.00µin (0.100µm)
- Mated Stacking Heights: 12mm, 14mm, 18mm
- Height Above Board: 0.406" (10.30mm)
