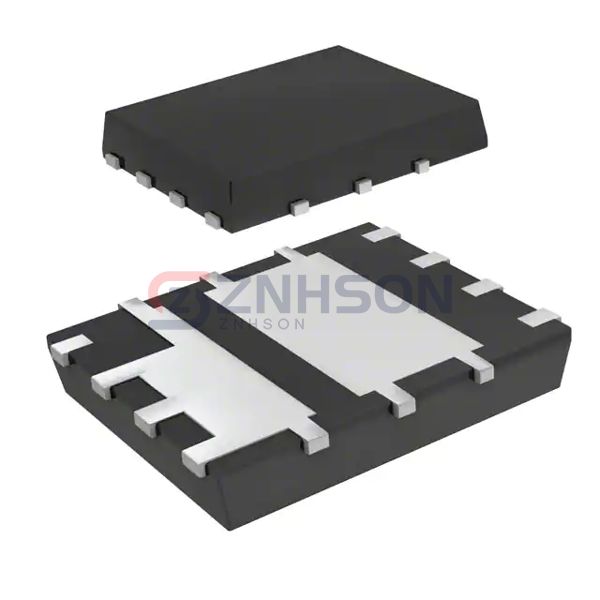

YJQ55P02A-F1-1100HF
Yangzhou Yangjie Electronic Technology Co.,Ltd
Yangzhou Yangjie Electronic Technology Co.,Ltd
P-CH MOSFET 20V 55A DFN3333-8L
$0.67
Available to order
Reference Price (USD)
1+
$0.67000
500+
$0.6633
1000+
$0.6566
1500+
$0.6499
2000+
$0.6432
2500+
$0.6365
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The YJQ55P02A-F1-1100HF single MOSFET from Yangzhou Yangjie Electronic Technology Co.,Ltd is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the YJQ55P02A-F1-1100HF is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 55A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 8.3mOhm @ 15A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 12.7 nC @ 10 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 6358 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 3.2W (Ta), 38W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-DFN (3.3x3.3)
- Package / Case: 8-PowerVDFN
