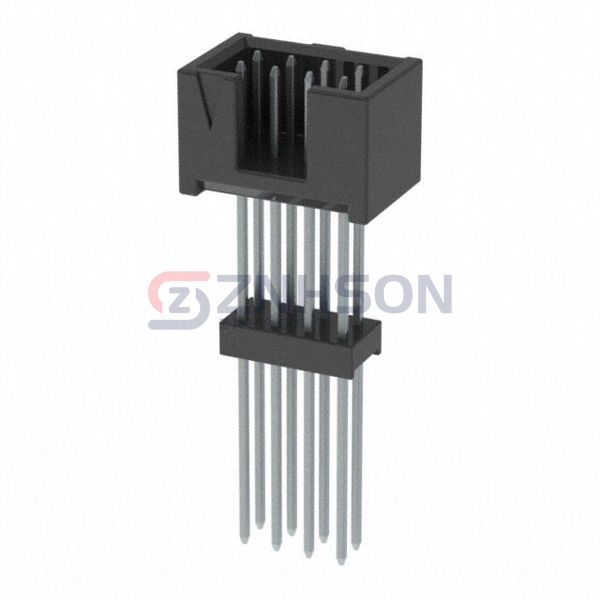

ZSS-104-09-T-D-800
Samtec Inc.
Samtec Inc.
CONN HDR .100" 8POS
$2.76
Available to order
Reference Price (USD)
1+
$2.76000
500+
$2.7324
1000+
$2.7048
1500+
$2.6772
2000+
$2.6496
2500+
$2.622
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-104-09-T-D-800 male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.630" (16.00mm)
- Overall Contact Length: 1.430" (36.32mm)
- Insulation Height: 0.800" (20.32mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
FTS-137-03-L-D
Preci-Dip
802-80-016-30-480101
Sullins Connector Solutions
NRPN242MAMS-RC
Assmann WSW Components
AWH 24G-0202-T
Würth Elektronik
690357281676
Samtec Inc.
TSM-106-02-L-SH
Preci-Dip
850-10-013-40-251101
Preci-Dip
800-80-044-20-001101
Adam Tech

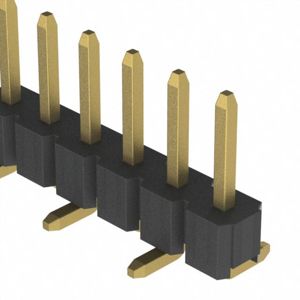

2PH1-06-UA-SMT-B
