Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories

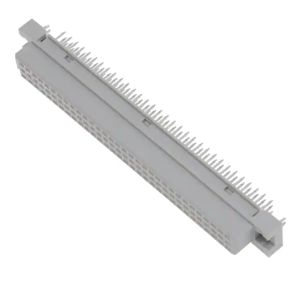

86093968114H55V1LF
CONN DIN RCPT 96POS PCB GOLD

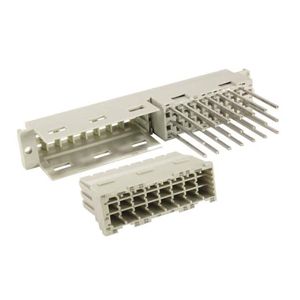

09060452871
CONN DIN RCPT 45POS GOLD

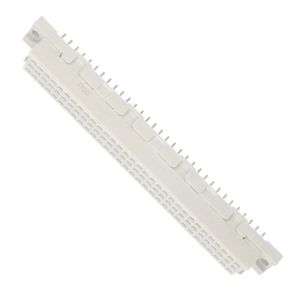

9-1393640-3
CONN DIN RCPT 96POS PCB GOLD

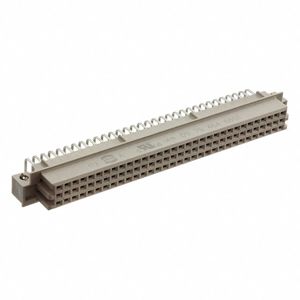

09794646801
CONN DIN RCPT 96POS PCB RA GOLD

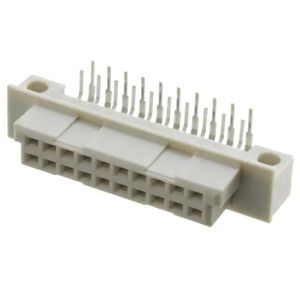

XC5F-5022-2A
CONN DIN RCPT 50POS PCB RA GOLD

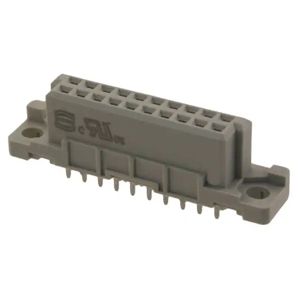

09242206824
CONN DIN RCPT 20POS PCB GOLD

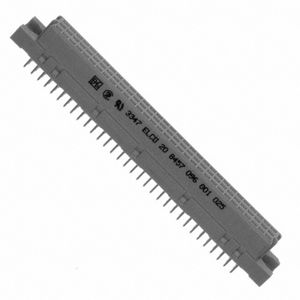

208457096001025
CONN DIN RCPT 96POS PCB GOLD

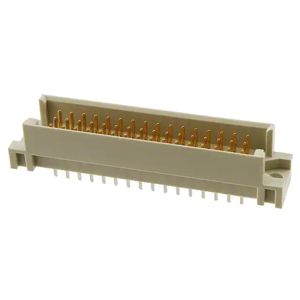

2-1393659-6
CONN DIN PLUG 48POS PCB GOLD

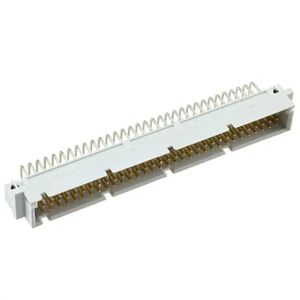

86093967113H55NALF
CONN DIN HDR 96POS PCB RA GOLD

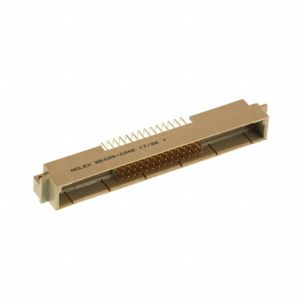

0850090048
CONN DIN HDR 48POS PCB RA GOLD

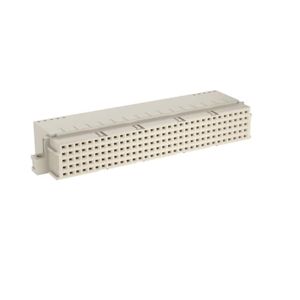

374380
DIN TE 160POS F SLDR RA CL2
254854
DIN C2 32POS F PFIT 5.5MM CL2

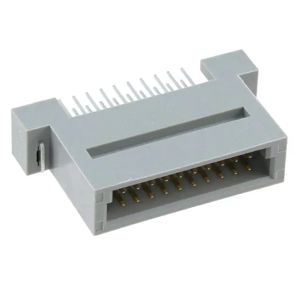

PCN10HA-20P-2.54DSA(72)
