Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories
9001-38321C00A
DIN41612, FEMALE, HALF Q, 32 PIN
650959-5
CONN DIN RCPT 150POS PCB RA GOLD
09060482905
CONN DIN HDR 48POS PCB GOLD
9001-1296W2G00PA
DIN41612, FEMALE, 96 PIN, RIGHT
09032642845
CONN DIN RCPT 96POS PCB GOLD
09231486921222
CONN DIN HDR 48POS PCB RA GOLD
5536437-4
CONN DIN PLUG 96POS PCB RA GOLD
09032965850
CONN DIN RCPT 96POS PCB GOLD
09032966855
CONN DIN RCPT 96POS PCB
650875-5
CONN DIN RCPT 150POS PCB RA GOLD
0850030567
CONN DIN HDR 96POS PCB RA GOLD
02021602201
CONN DIN RCPT 160POS PCB
86092645113765E1LF
CONN DIN HDR 64POS PCB RA GOLD
PCN10-96S-2.54WA(72)
CONN DIN RCPT 96POS PCB GOLD

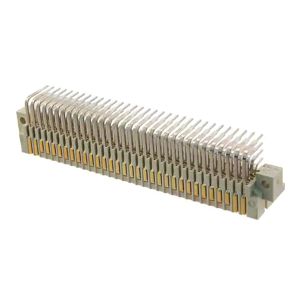

02011602101
CONN DIN HDR 160POS PCB RA

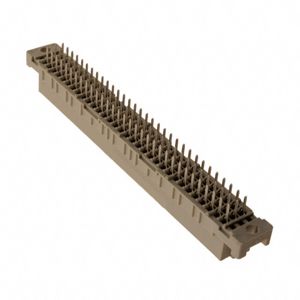

09032967825
CONN DIN RCPT 96POS PCB

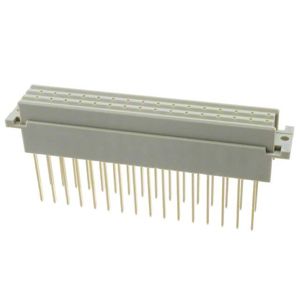

2-164430-4
CONN DIN RCPT 32POS PCB GOLD

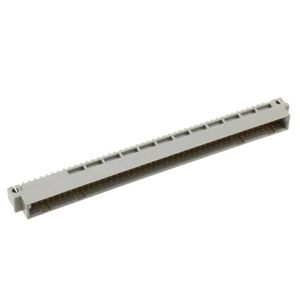

PCN10EB-90P-2.54DS(72)
CONN DIN HDR 90POS PCB RA GOLD

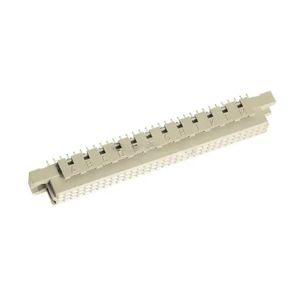

09037648825
DIN C FEMALE STRAIGHT 64PIN W/
5148295-5
CONN DIN RCPT 150POS PCB RA GOLD
