Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories

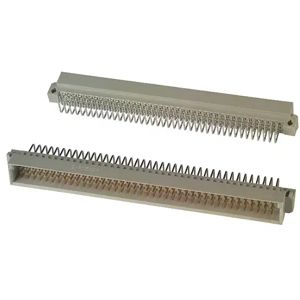

5650906-5
CONN DIN PLUG 120POS PCB RA GOLD

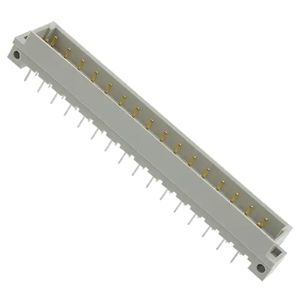

09041326922
CONN DIN HDR 32POS PCB GOLD

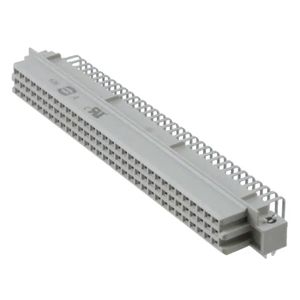

09734966801
CONN DIN RCPT 96POS PCB RA

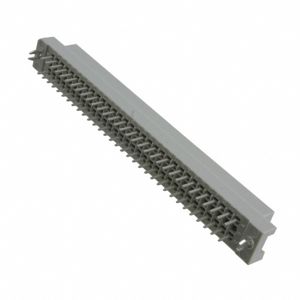

DIN-064CSB-R1L-HM
CONN DIN RCPT 96POS PCB GOLD

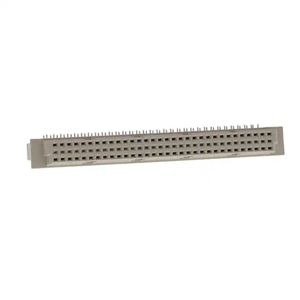

XC5H-4822
CONN DIN RCPT 48POS PCB RA GOLD

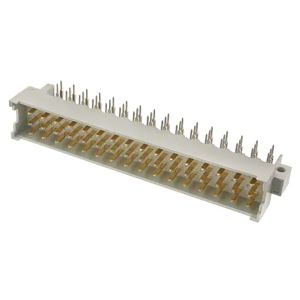

5159009486394AAKLF
CONN DIN HDR 48POS PCB RA GOLD

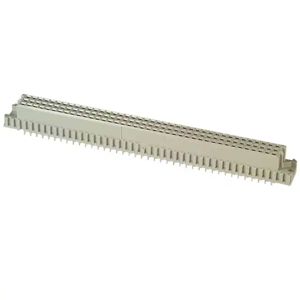

535098-5
CONN DIN RCPT 120POS PCB GOLD

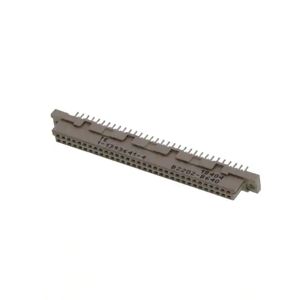

1-1393641-4
CONN DIN RCPT 64POS PCB GOLD

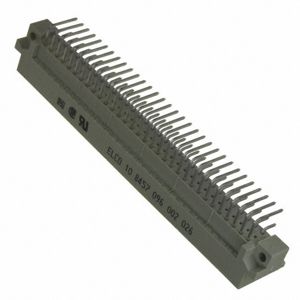

108457096002025
CONN DIN HDR 96POS PCB RA GOLD

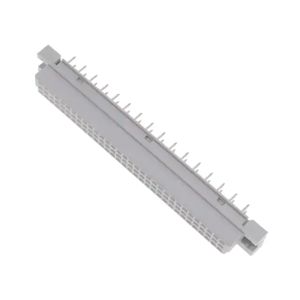

86094328114748V1LF
CONN DIN RCPT 96POS PCB GOLD

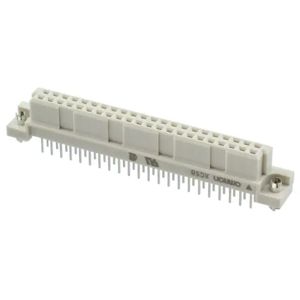

XC5B-4421
CONN DIN RCPT 44POS PCB GOLD

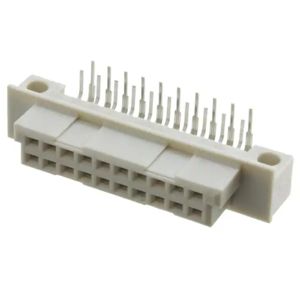

XC5F-5022-2
CONN DIN RCPT 50POS PCB RA GOLD

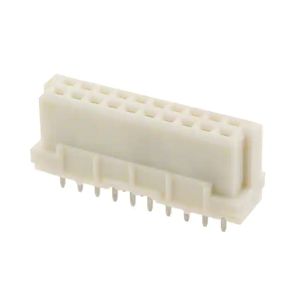

09242206414
CONN DIN RCPT 20POS PCB GOLD

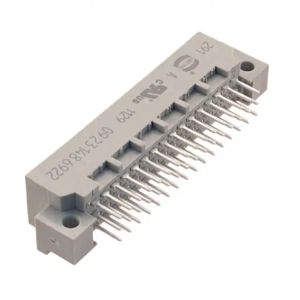

09231486922
CONN DIN HDR 48POS PCB GOLD

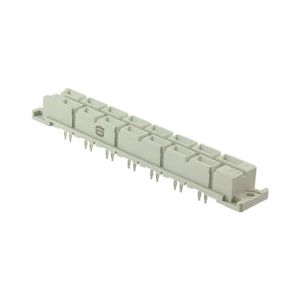

09062152856222
CONN DIN HDR 15POS PCB GOLD

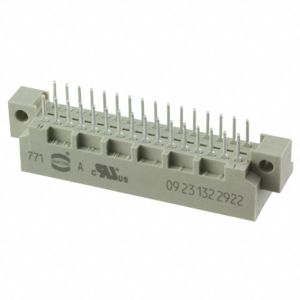

09231322922
CONN DIN HDR 48POS PCB GOLD

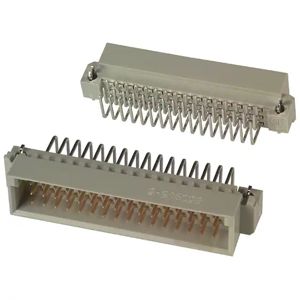

650916-5
CONN DIN PLUG 48POS PCB RA GOLD

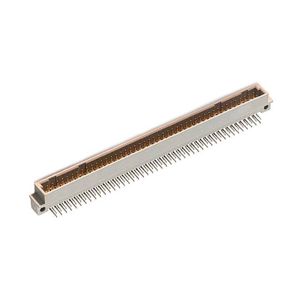

PCN10-90P-2.54DS(72)
CONN DIN HDR 90POS PCB RA GOLD

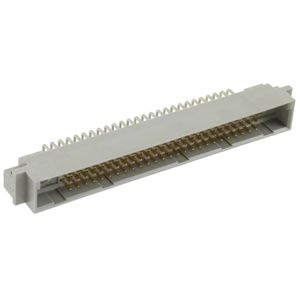

PCN10F-78P-2.54DS(72)
CONN DIN HDR 78POS PCB RA GOLD

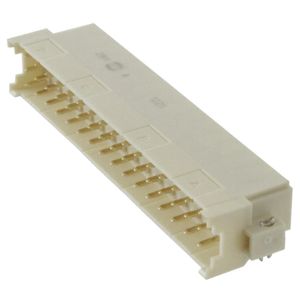

09063486951
CONN DIN HDR 48POS PCB RA
