Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories

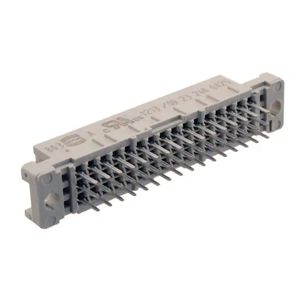

09232486825
CONN DIN RCPT 48POS PCB

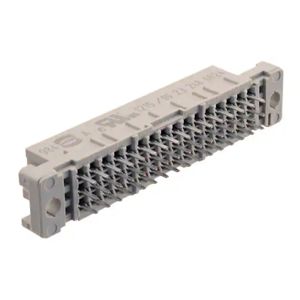

09232486824
CONN DIN RCPT 48POS PCB

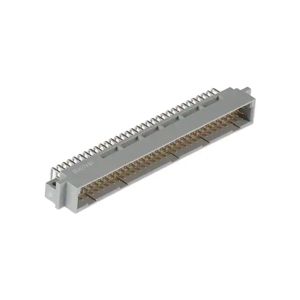

PCN10-96P-2.54DS(77)
CONN DIN HDR 96POS PCB RA GOLD

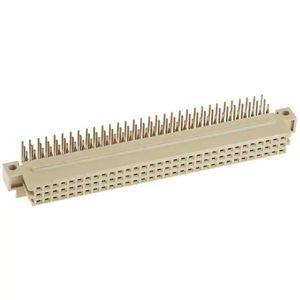

09732326811
CONN DIN RCPT 96POS PCB RA GOLD

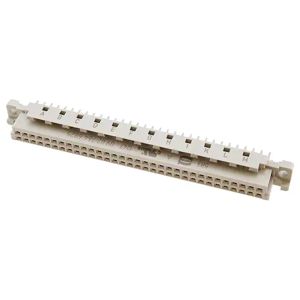

09027646825
CONN DIN RCPT 64POS PNL MNT GOLD

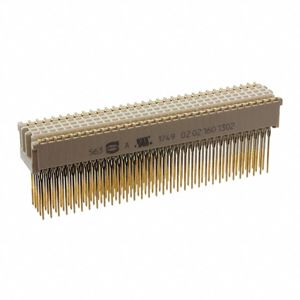

02021601302
CONN DIN RCPT 160POS PCB

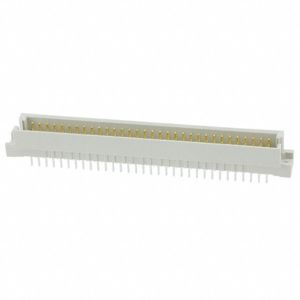

09731647903
CONN DIN HDR 96POS PCB GOLD

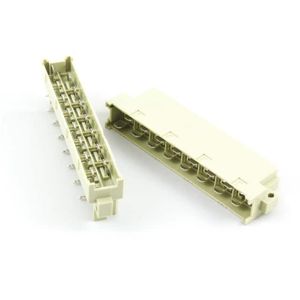

9001-51151AA
DIN41612, MALE, H15 TYPE, 15 PIN

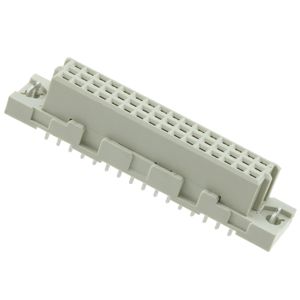

2-1393641-5
CONN DIN RCPT 48POS PCB GOLD

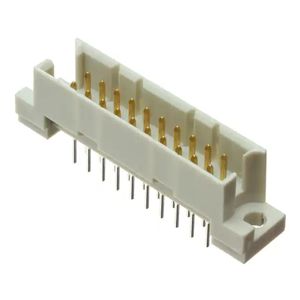

XC5E-4421
CONN DIN PLUG 44POS PCB GOLD

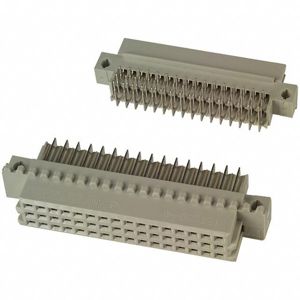

5650868-9
CONN DIN RCPT 48POS PCB RA GOLD

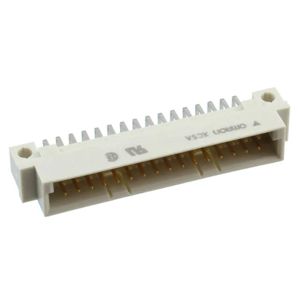

XC5A-4482-1A
CONN DIN PLUG 44POS PCB RA GOLD

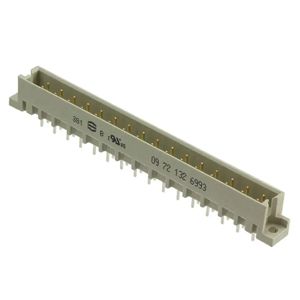

09721326993
CONN DIN HDR 64POS PCB GOLD
9001-1296W1C00A
DIN41612, FEMALE, W TYPE, 96 PIN

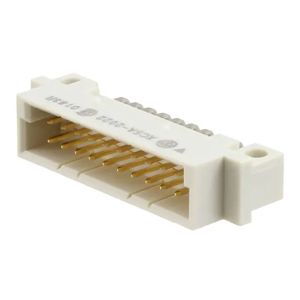

XC5A-0142
CONN DIN PLUG 100POS PCB RA GOLD

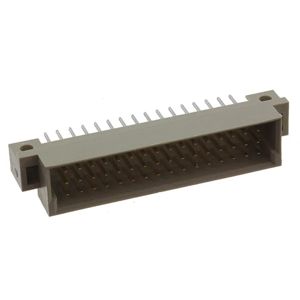

09231482922
CONN DIN HDR 48POS PCB GOLD

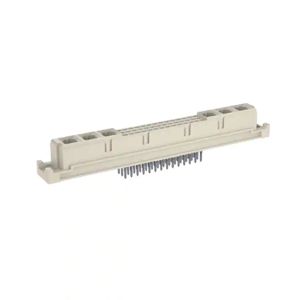

294736
DIN M 42POS F PFIT 5.5MM CL2

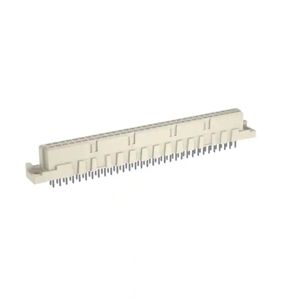

284166
DIN B 64POS F SLDR 4.0MM CL2

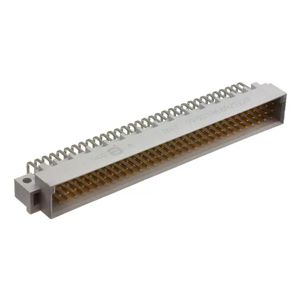

09031966921222
CONN DIN HDR 96POS PCB RA GOLD

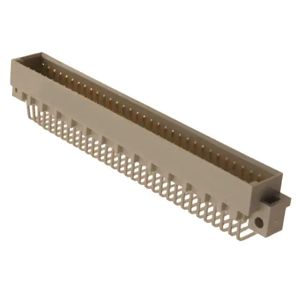

09031646921
CONN DIN HDR 96POS PCB RA
