Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories

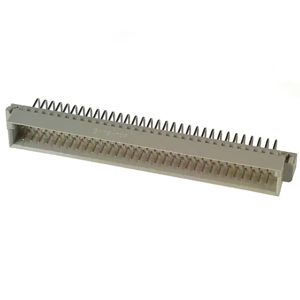

650945-5
CONN DIN PLUG 96POS PCB RA GOLD

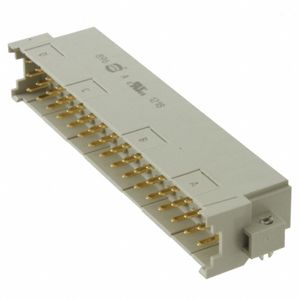

09063486901
CONN DIN HDR 48POS PCB RA GOLD

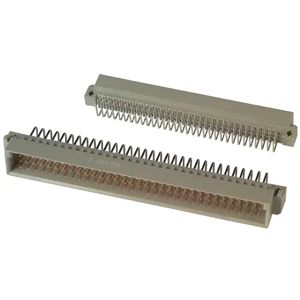

536010-5
CONN DIN PLUG 96POS PCB RA GOLD
5535034-4
CONN DIN RCPT 48POS PCB GOLD

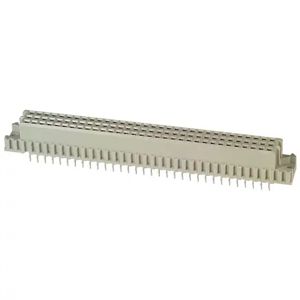

5535059-5
CONN DIN RCPT 96POS PCB GOLD

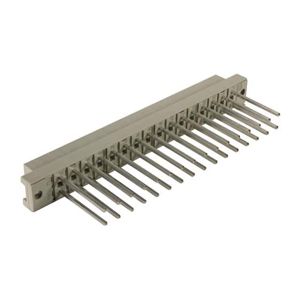

09042322821
CONN DIN RCPT 32POS PCB GOLD

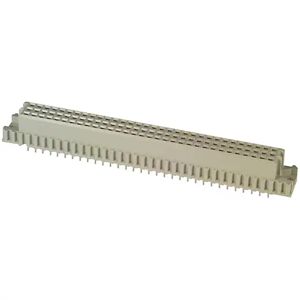

5650408-4
CONN DIN RCPT 96POS PCB GOLD

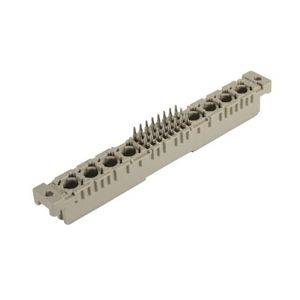

09032242830
CONN DIN RCPT 32POS PCB GOLD

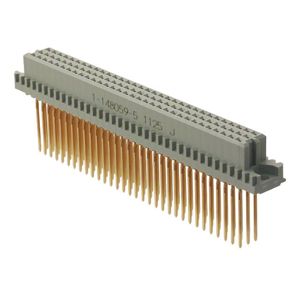

1-148059-5
CONN DIN RCPT 96POS PCB GOLD

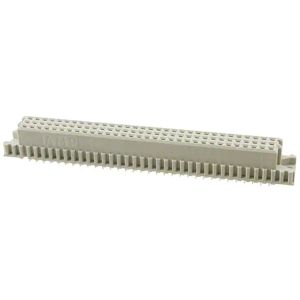

535089-5
CONN DIN RCPT 96POS PCB GOLD

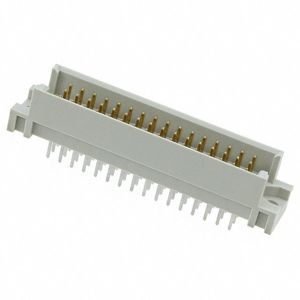

3-1393659-9
CONN DIN PLUG 48POS PCB GOLD

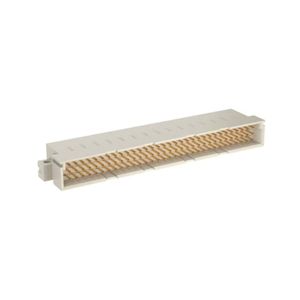

254835
DIN C 96POS M PFIT RA CL2
RE96FWR
CONN DIN RCPT 96POS PCB RA GOLD

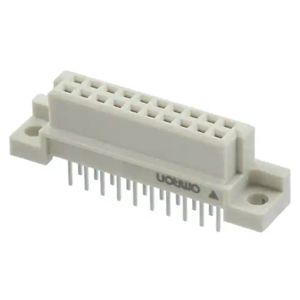

XC5B20310ABYOMR
CONN DIN RCPT 20POS PCB
09232482824
CONN DIN RCPT 48POS PCB

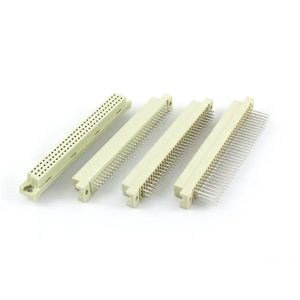

9001-1296W2C00PA
DIN41612, FEMALE, C TYPE, 96 PIN

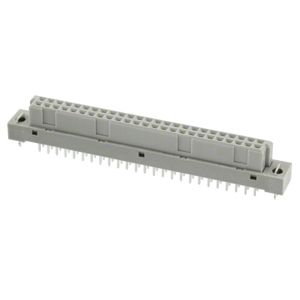

PCN10EA-50S-2.54DSA(72)
CONN DIN RCPT 50POS PCB GOLD

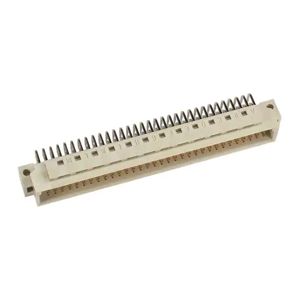

09036966921222
CONN DIN HDR 96POS PCB RA GOLD

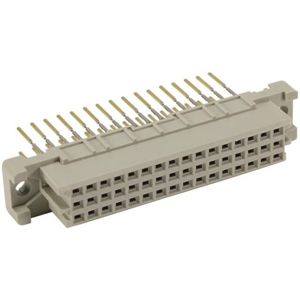

09232486862
DIN-SIGNAL 2C048FP-17 0C1-2

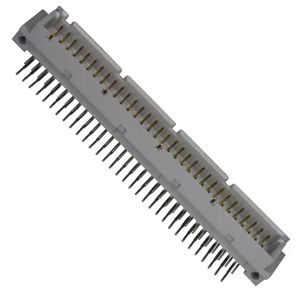

86094647113755ELF
CONN DIN HDR 96POS PCB RA GOLD
