Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories

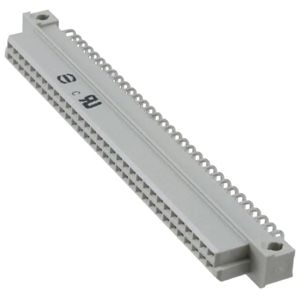

09722646801
CONN DIN RCPT 64POS PCB RA GOLD
PCN10-44P-2.54DS(72)
CONN DIN HDR 44POS PCB RA GOLD

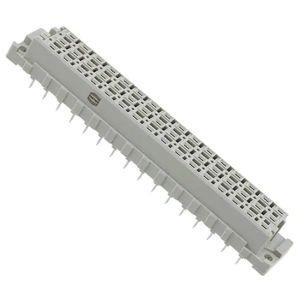

09057486831
CONN DIN RCPT 48POS PCB GOLD

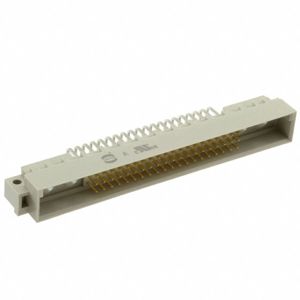

09031607901
CONN DIN HDR 64POS PCB RA GOLD
86093967894755CALF
CONN DIN HDR 96POS PCB GOLD

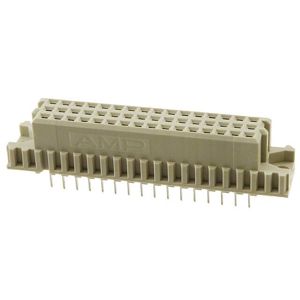

650466-4
CONN DIN RCPT 48POS PCB GOLD

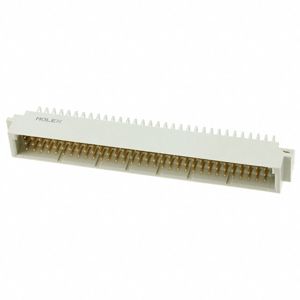

0850030177
CONN DIN HDR 96POS PCB RA GOLD

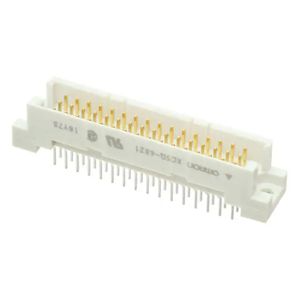

XC5G-9621A
CONN DIN PLUG 96POS PCB

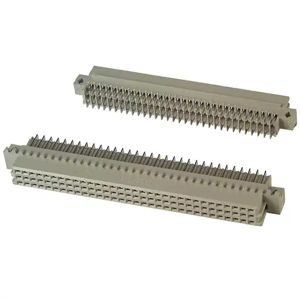

5650870-4
CONN DIN RCPT 96POS PCB RA GOLD

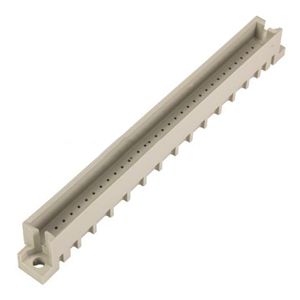

09721643101
DIN-SIGNAL Q064M-B1-(SHROUD)

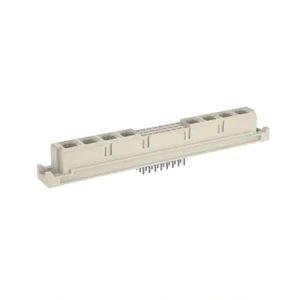

354163
DIN M 24POS F SLDR 4.0MM CL1

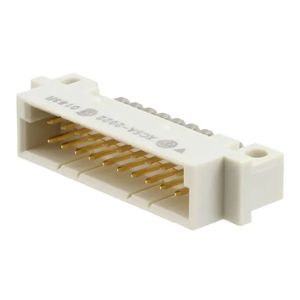

XC5A-6422-1A
CONN DIN PLUG 64POS PCB RA GOLD

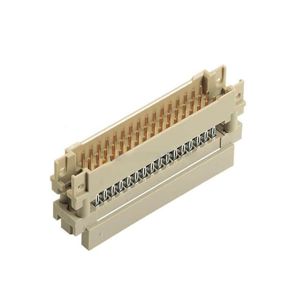

09281485531
CONN DIN HDR 48POS GOLD

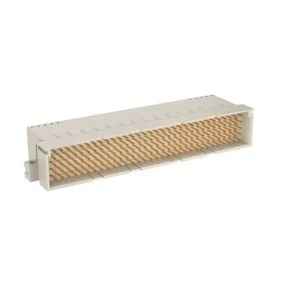

384299
DIN E 160POS M SLDR RA CL2

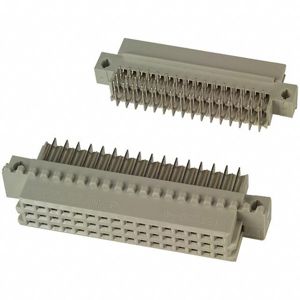

650868-5
CONN DIN RCPT 48POS PCB RA GOLD

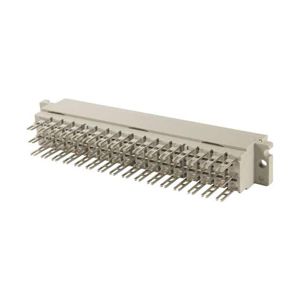

09062322823
CONN DIN RCPT 48POS IN-LINE GOLD

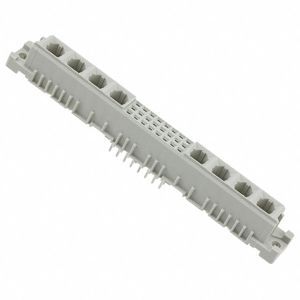

09032246865
CONN DIN RCPT 32POS PCB GOLD

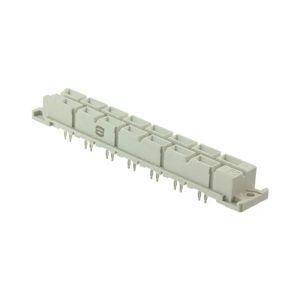

09062152856
CONN DIN HDR 15POS PCB GOLD

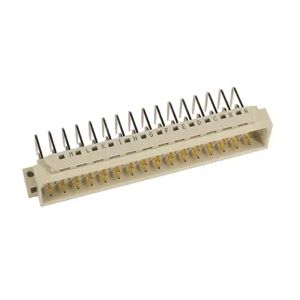

09056482921
CONN DIN HDR 48POS PCB RA

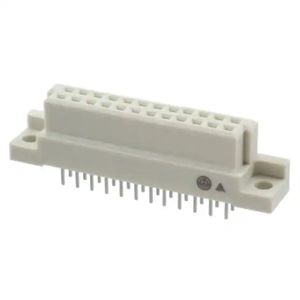

XC5B24313ABYOMR
CONN DIN RCPT 24POS PCB
