Banana and Tip Connectors - Jacks, Plugs
Banana and Tip Connectors - Jacks, Plugs
Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories

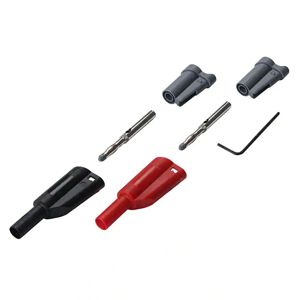

CT3206W
CONN BANANA PLUG STACK SLDRLESS

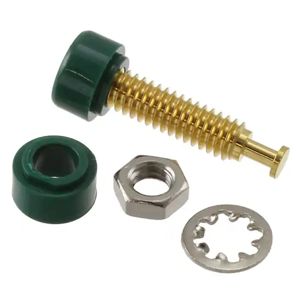

3542-5
CONN TIP JACK THRD GREEN

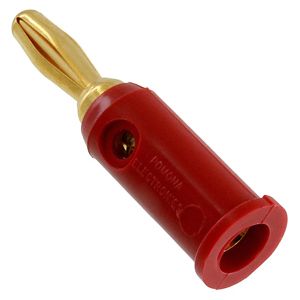

5406-2
CONN BANANA PLUG STACK SLDRLESS

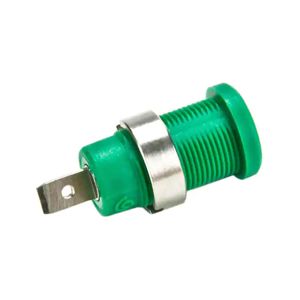

CT2910-5
CONN BANANA JACK QC GREEN

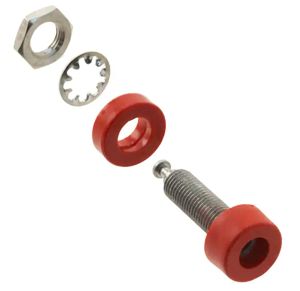

1581-2
CONN BANANA JACK TURRET RED
CT3134-6
CONN BANANA JACK SOLDERLESS BLUE

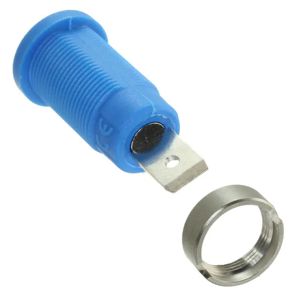

CT2910-6
CONN BANANA JACK QC BLUE

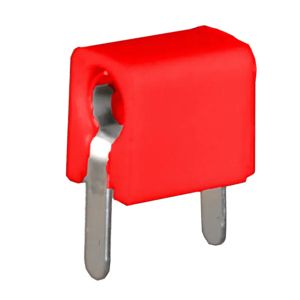

105-0752-150
CONN TIP JACK SOLDER RED

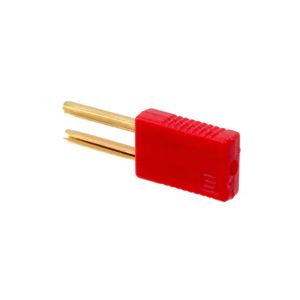

0040.1162
CONN DBL TIP PLUG STACK SLDR RED

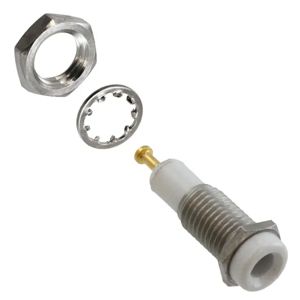

105-0201-200
CONN TIP JACK TURRET WHITE

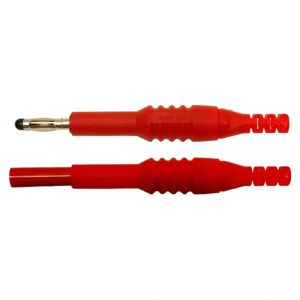

FCR6381R
4MM PLUG P14XASR RED

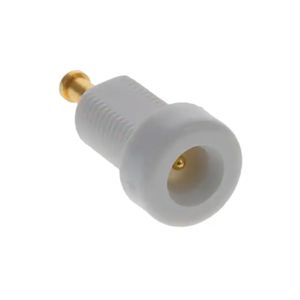

105-1301-002
CONN TIP PLUG TURRET WHITE

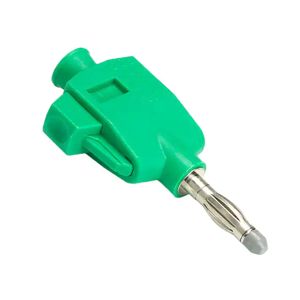

CT3249-5
CONN BANANA PLUG SLDRLESS GREEN

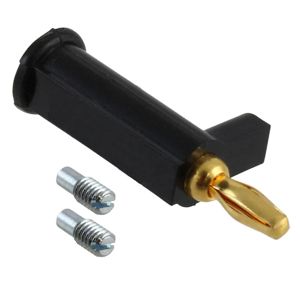

2945-0
CONN BAN PLG STACK MINI SLDRLESS

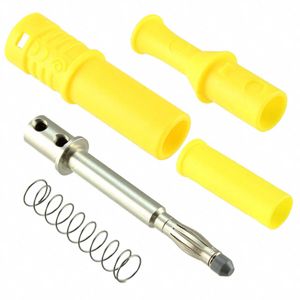

CT3201-4
CONN BANANA PLUG SLDRLESS YELLOW

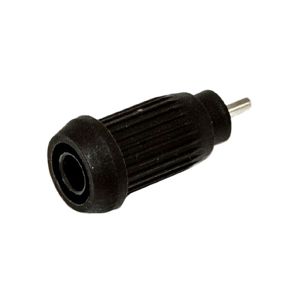

BU-31602-0
CONN BANANA JACK SOLDER BLACK

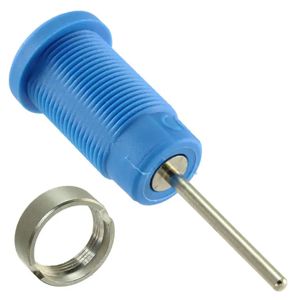

CT2906-6
CONN BANANA JACK SOLDER BLUE

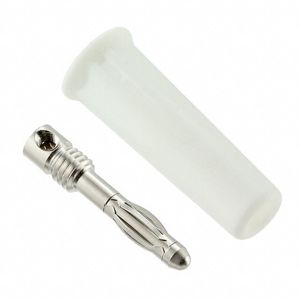

CT2011-9
CONN BANANA PLUG SLDRLESS WHITE

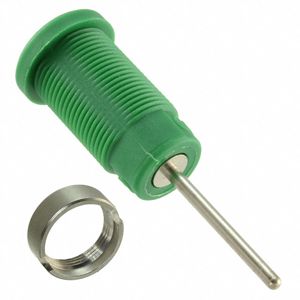

CT2906-5
CONN BANANA JACK SOLDER GREEN
9284BRN
CONN BANANA JACK TURRET BROWN
