Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories

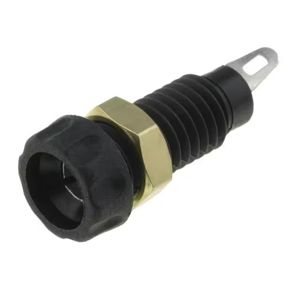

CL1450
4MM PANEL SKT S14 BLACK + NUT

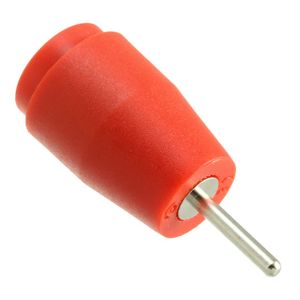

CT3149-2
CONN BANANA JACK SOLDER RED

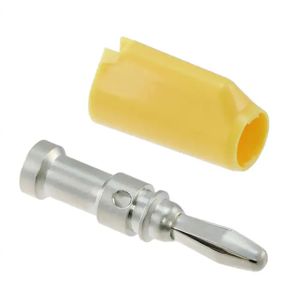

108-1087-001
CONN BAN PLUG STACK SLD/SLDRLESS
CT2915-8
CONN BANANA JACK QC GRAY

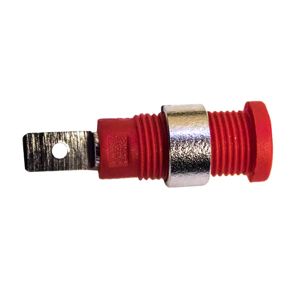

BU-P72922-2
CONN TIP JACK QUICK CONNECT RED

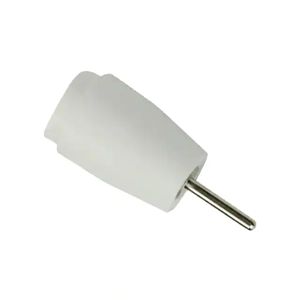

CT3149-9
CONN BANANA JACK SOLDER WHITE

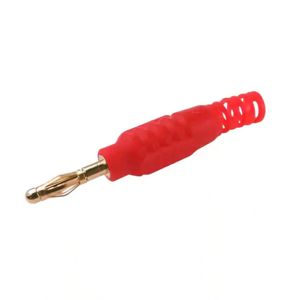

FCR7365R
P18 2MM PLUG UNSHROUDED RED

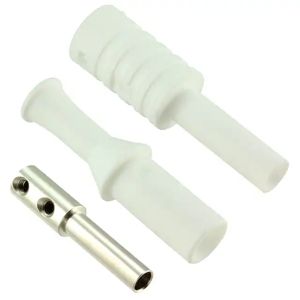

CT3134-9
CONN BANANA JACK SLDRLESS WHITE

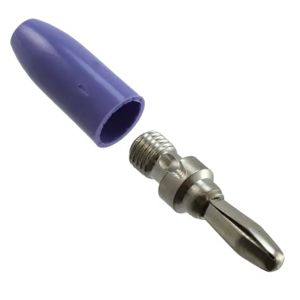

108-0312-001
CONN BANANA PLUG SLDRLESS VIOLET

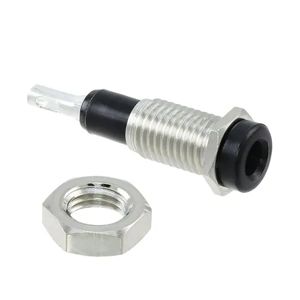

6026
CONN TIP JACK SLDR EYELET BLACK

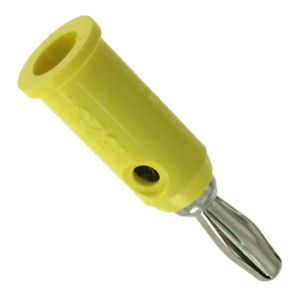

1325-4
CONN BANANA PLUG STACK SLDRLESS
CT2911-9
CONN BANANA JACK QC WHITE

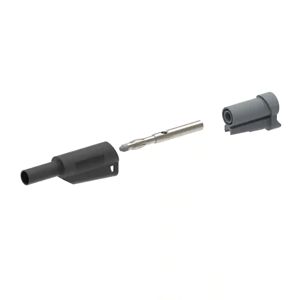

CT2631-S-0
CONN BANANA PLUG STACK SLDR BLK

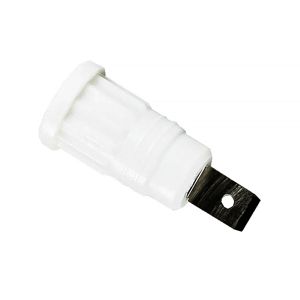

CT2915-9
CONN BANANA JACK QC WHITE

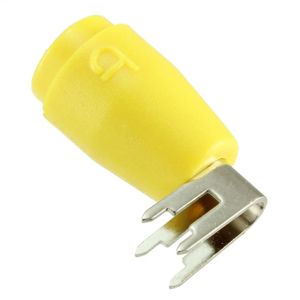

CT3151SP-4
CONN BANANA JACK SOLDER YELLOW

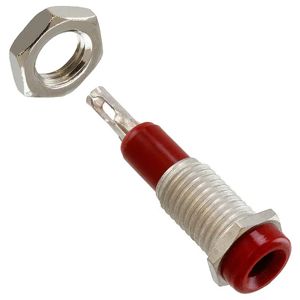

105-0252-001
CONN TIP JACK SLDR EYELET RED

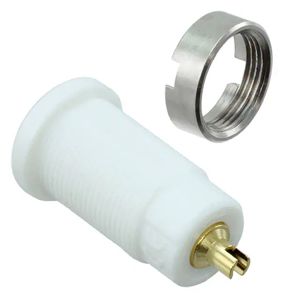

5931-9
CONN BANANA JACK SOLDER WHITE

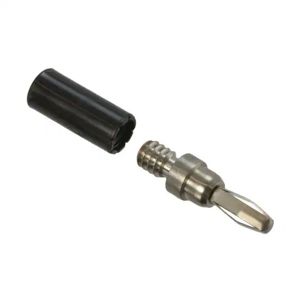

108-1003-001
CONN BANANA PLUG MINI SLDR BLACK
2143-2
CONN DBL BANANA JACK MIN TURRET

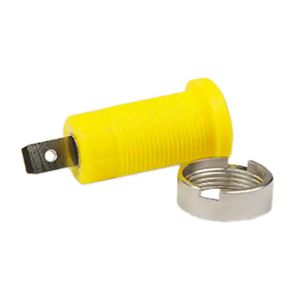

CT2910-4
CONN BANANA JACK QC YELLOW
