Banana and Tip Connectors - Jacks, Plugs
Banana and Tip Connectors - Jacks, Plugs
Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories
105-0804-001
CONN TIP JACK SLDR EYELET GREEN

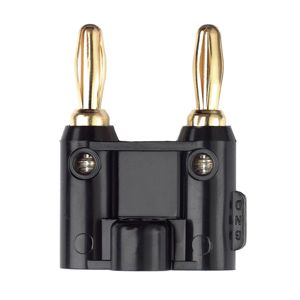

4892-0
CONN DBL BAN PLUG STACK SLDRLESS

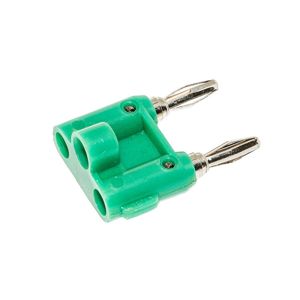

BU-00247-5
CONN DBL BAN PLUG STACK SLDRLESS

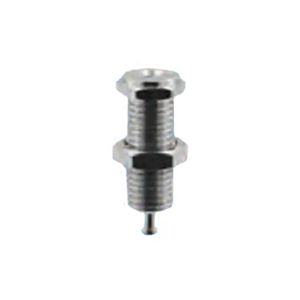

6097
CONN TIP JACK TURRET

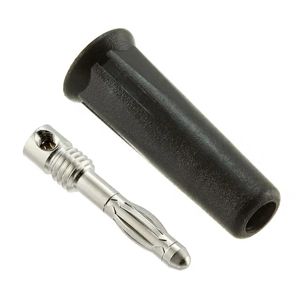

CT2011-0
CONN BANANA PLUG SLDRLESS BLACK

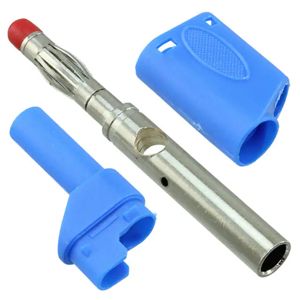

BU-3110410-6
CONN BANANA PLUG STACK SOLDER

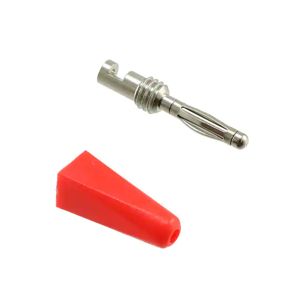

5936-2
CONN BANANA PLUG MINI SLDR RED

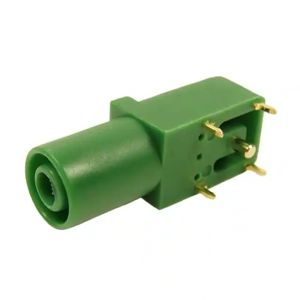

FCR7350G
4MM PANEL SKT S16N-PC GREEN

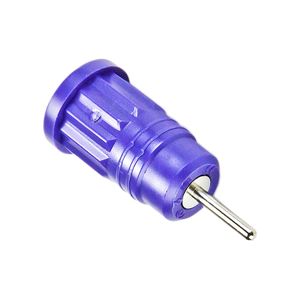

CT2912-7
CONN BANANA JACK SOLDER VIOLET

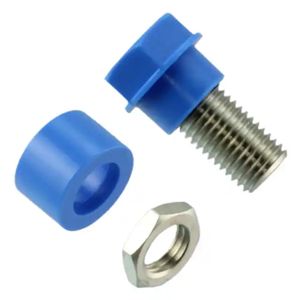

CT2230-6
CONN BANANA JACK THREADED BLUE

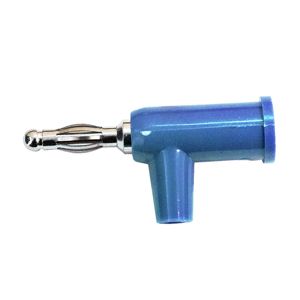

BU-P1825-6
CONN BANANA PLUG STACK SLDRLESS

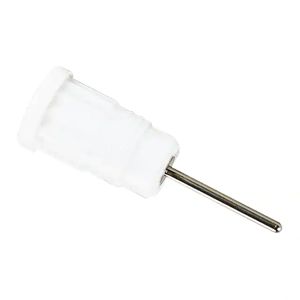

CT2913-9
CONN BANANA JACK PRESS-FIT WHITE

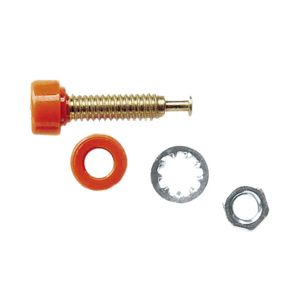

3542-3
CONN TIP JACK THRD ORANGE

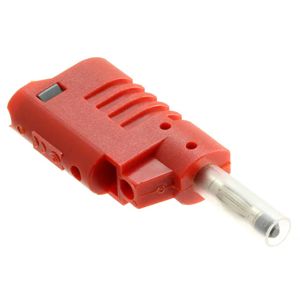

CT2015-2
CONN BANANA PLUG STACK SLDRLESS

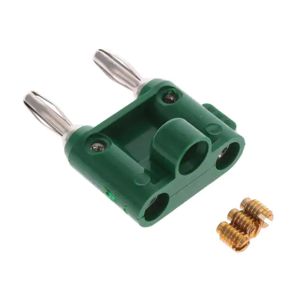

MDP-5
CONN DBL BAN PLUG STACK SLDRLESS

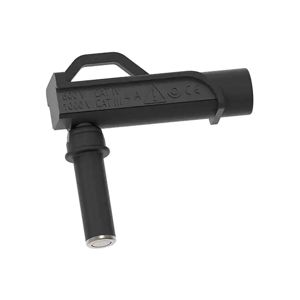

CT3882-0
8MM MAG CONN RA BANANA JACK BLK

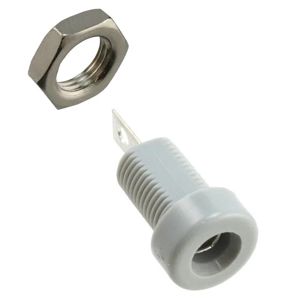

108-0913-001
CONN BANANA JACK SLDR TABS GRAY

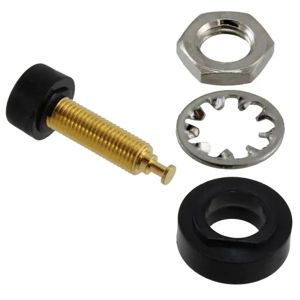

2854-0
CONN BANANA JACK TURRET BLACK

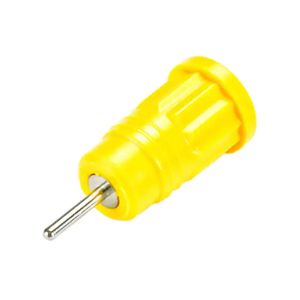

CT2912-4
CONN BANANA JACK SOLDER YELLOW
09-9208-1-03512
INSULATED PC JACKS
