FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

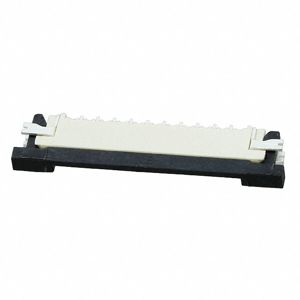

686110183522
CONN FFC BTM 10POS 1MM SMD R/A

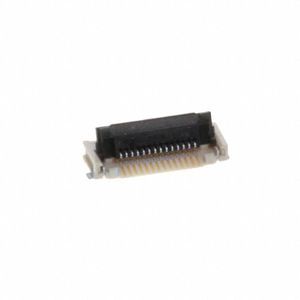

5052781633
0.5 FFC ZIF BTM CONT EMBT PKG 16

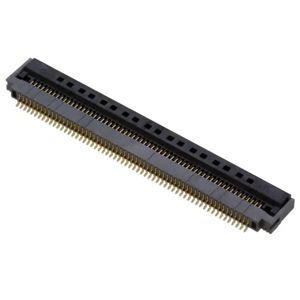

FH52-60S-0.5SH(99)
CONN FFC BOTTOM 60POS 0.50MM R/A

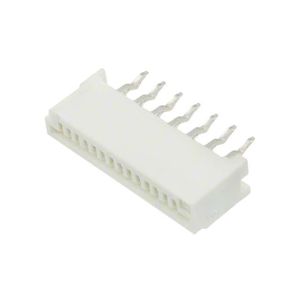

1-84534-4
CONN FFC VERT 14POS 1.25MM PCB

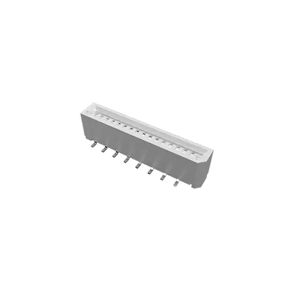

F52L-1A7A1-11013
FLEX CONNECTOR, 1.00MM PITCH, HE

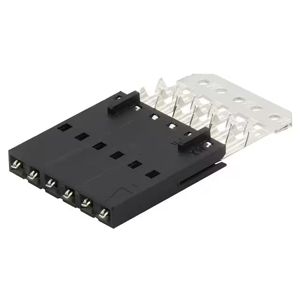

15-38-9042
SL FFC/FPC OPT D MALE TIN 4CKT

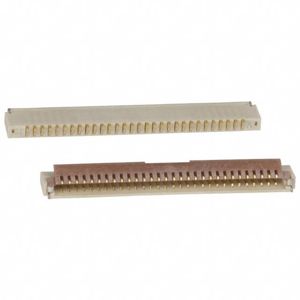

FH19C-30S-0.5SH(10)
CONN FFC BOTTOM 30POS 0.50MM R/A

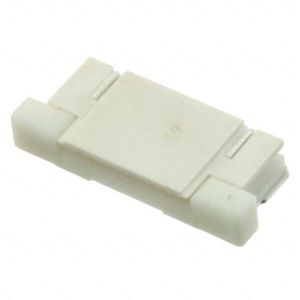

1-1734839-1
CONN FPC TOP 11POS 0.50MM R/A

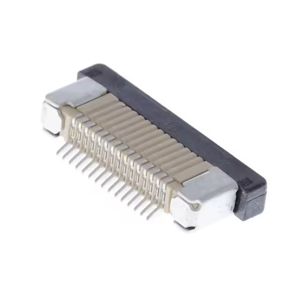

ZF5S-15-01-T-WT-K-TR
0.50 MM ZERO INSERTION FORCE FFC

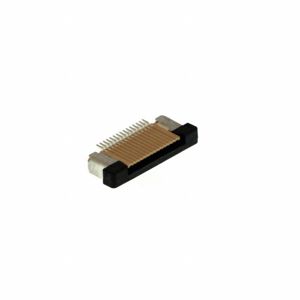

ZF5S-15-01-T-WT-TR
CONN FFC BOTTOM 15POS 0.50MM R/A

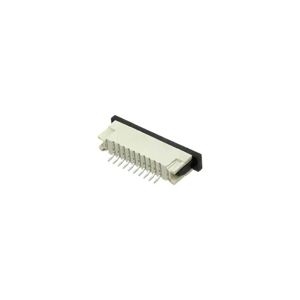

ZF1-10-01-T-WT
CONN FFC BOTTOM 10POS 1.00MM R/A

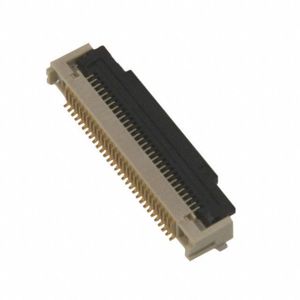

5027903091
CONN FPC BOTTOM 30POS 0.50MM R/A

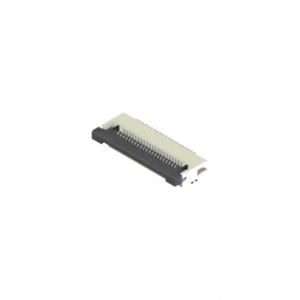

CF25321D0R0-05-NH
CF25 SERIES 0.50MM(.020") ZIF ON
5014610491
CONN FPC BOTTOM 4POS 0.50MM R/A

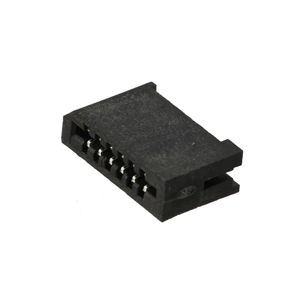

PCB-C5-06-SA-SMT
FPC/FFC CONNECTOR, LIF TYPE, 1.0

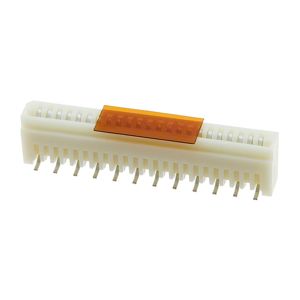

2-1735042-3
CONN FFC FPC VERT 23POS 1MM SMD

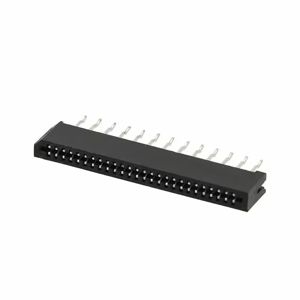

PCB-C-26-T-20
FPC/FFC CONNECTOR, LIF TYPE, 1.0

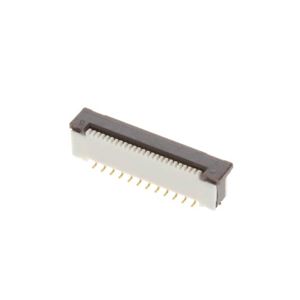

046214024010846+
0.5MM PITCH - 24 POS - VERTICAL

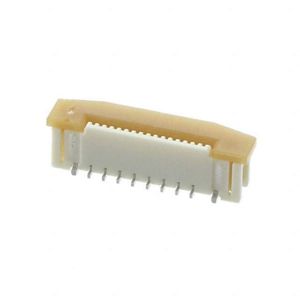

0525591652
CONN FPC/FFC 16POS .5MM VERT ZIF

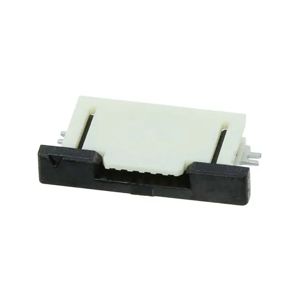

0527450633
CONN FFC FPC TOP 6POS 0.50MM R/A
