FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

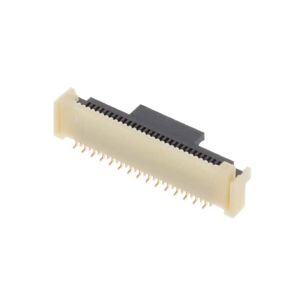

046251030010846+
0.5MM PITCH - 30 POS - VERTICAL

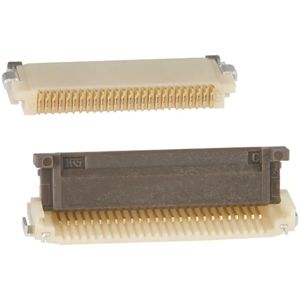

FH12-26S-0.5SH(55)
CONN FFC BOTTOM 26POS 0.50MM R/A

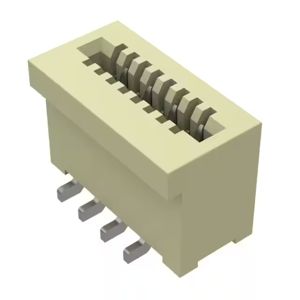

CF24082V0R0-NH
CF24 SERIES 0.50MM(.020") LIF TO
F519-1A7A1-11022-E200
FLEX CONNECTOR, 1.00MM PITCH, HE
FH12-33S-0.5SH(1)(98)
CONN FFC BOTTOM 33POS 0.50MM R/A

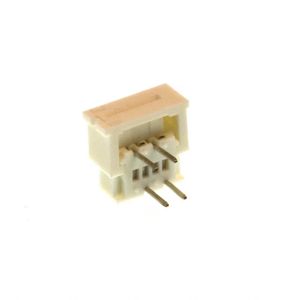

0039532044
CONN FFC FPC TOP 4POS 1.25MM R/A

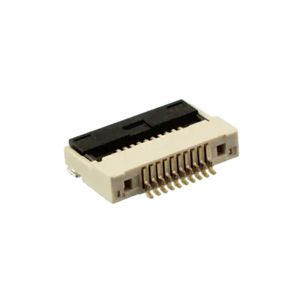

046288010000846+
CONN FFC BOTTOM 10POS 0.50MM R/A

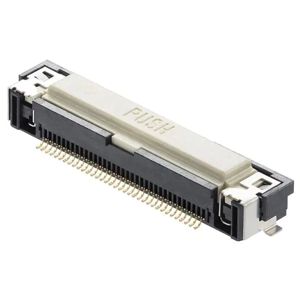

2004850630
0.5 ONE-TOUCH RA 30P GND

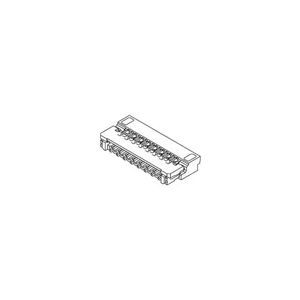

503566-4300
0.3 FPC E/O HSG ASSY 43CKT EMBST

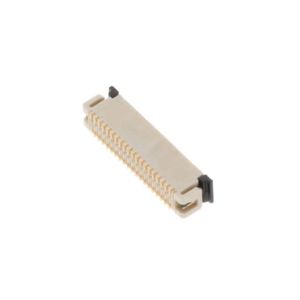

046841039100846+
CONN FPC VERT 39POS 0.30MM SMD

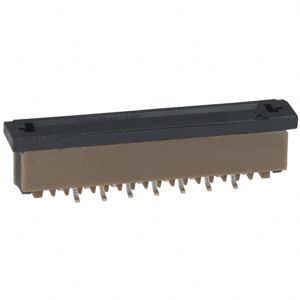

SFW15S-2STE1LF
CONN FFC FPC VERT 15POS 1MM SMD
10085901-50115EHLF
CONN FFC BOTTOM 50POS 0.50MM R/A
14FLZ-SM2-TB(LF)(SN)
CONN FFC TOP 14POS 0.50MM R/A

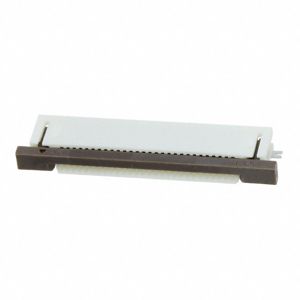

0524372833
CONN FFC BOTTOM 28POS 0.50MM R/A

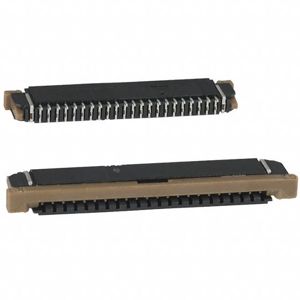

SFW22R-3STE1LF
CONN FFC BOTTOM 22POS 1.00MM R/A

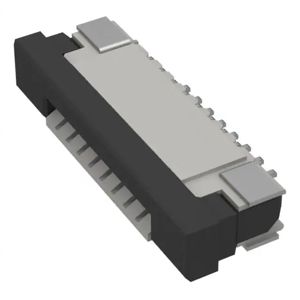

FFC3B07-08-T
08W, 1.0MM FFC CONN, R/A,BOT CON
F32R-1A7H1-11031
FLEX CONNECTOR, 0.50MM PITCH, HE

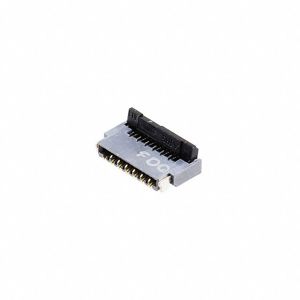

FH35C-13S-0.3SHW(50)
CONN FPC 13POS 0.30MM R/A

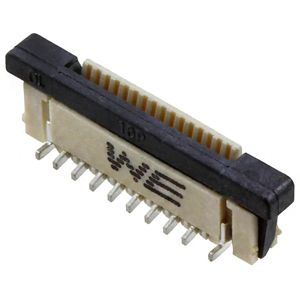

687316124422
CONN FPC VERT 16POS 0.50MM SMD
006208512210000
CONN FFC FPC VERT 12POS 1MM SMD
